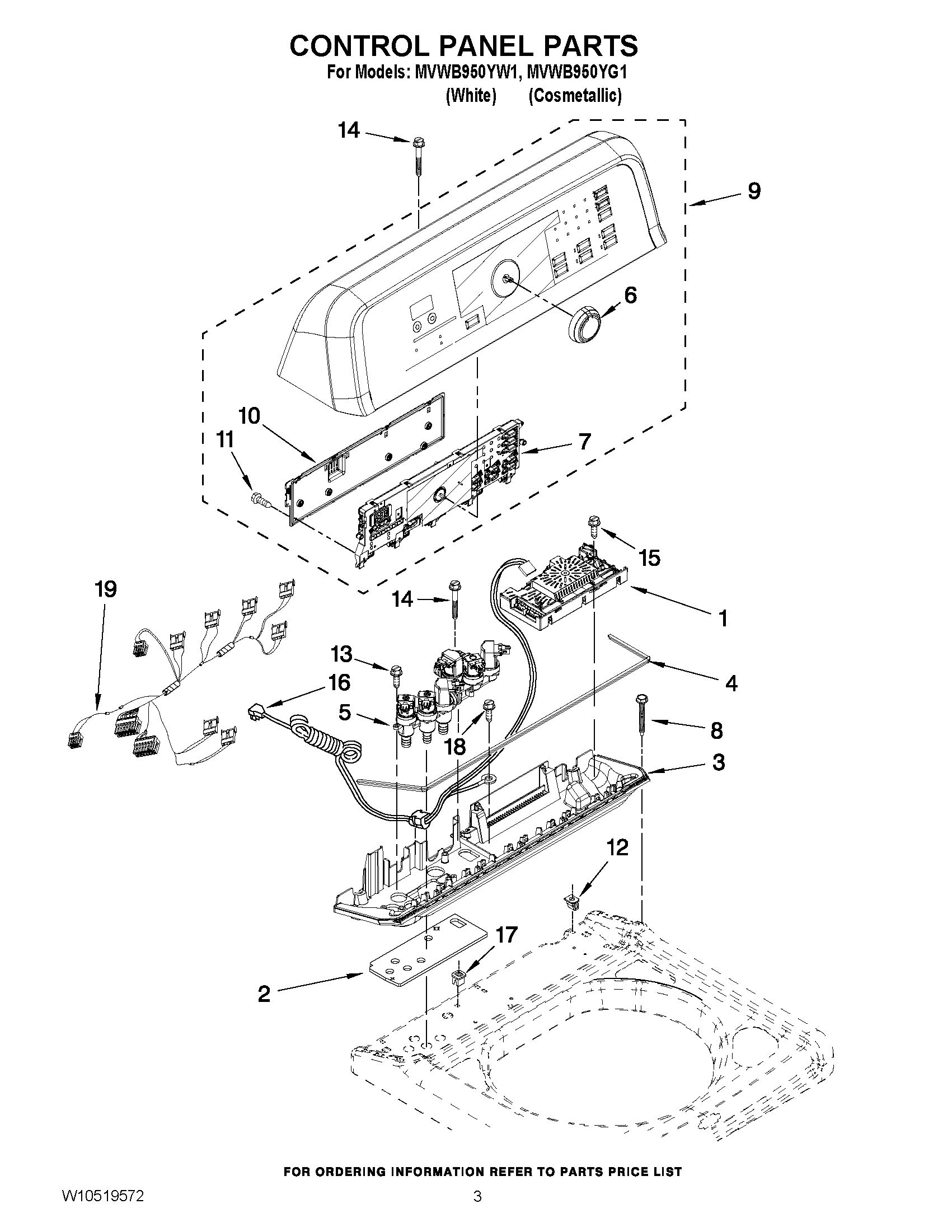

MVWB950YG1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10447143
2	MAY W10141695
3	TRAY ASSEMBLY, CONSOLE (INCLUDES ITEMS 2 & 4) (WHITE)
3	MAY W10356746
4	MAY W10141693
5	MAY W10342320
6	MAY W10338554
7	MAY W10426809
8	SCREW
9	MAY W10396165
9	MAY W10396164
10	COVER, REAR
11	Screw, 6-19 x 3/64
12	NUT, PUSH IN
13	SCREW
14	SCREW
15	SCREW
16	MAY W10420367
17	NUT, PUSH-IN
18	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
19	MAY W10404419
