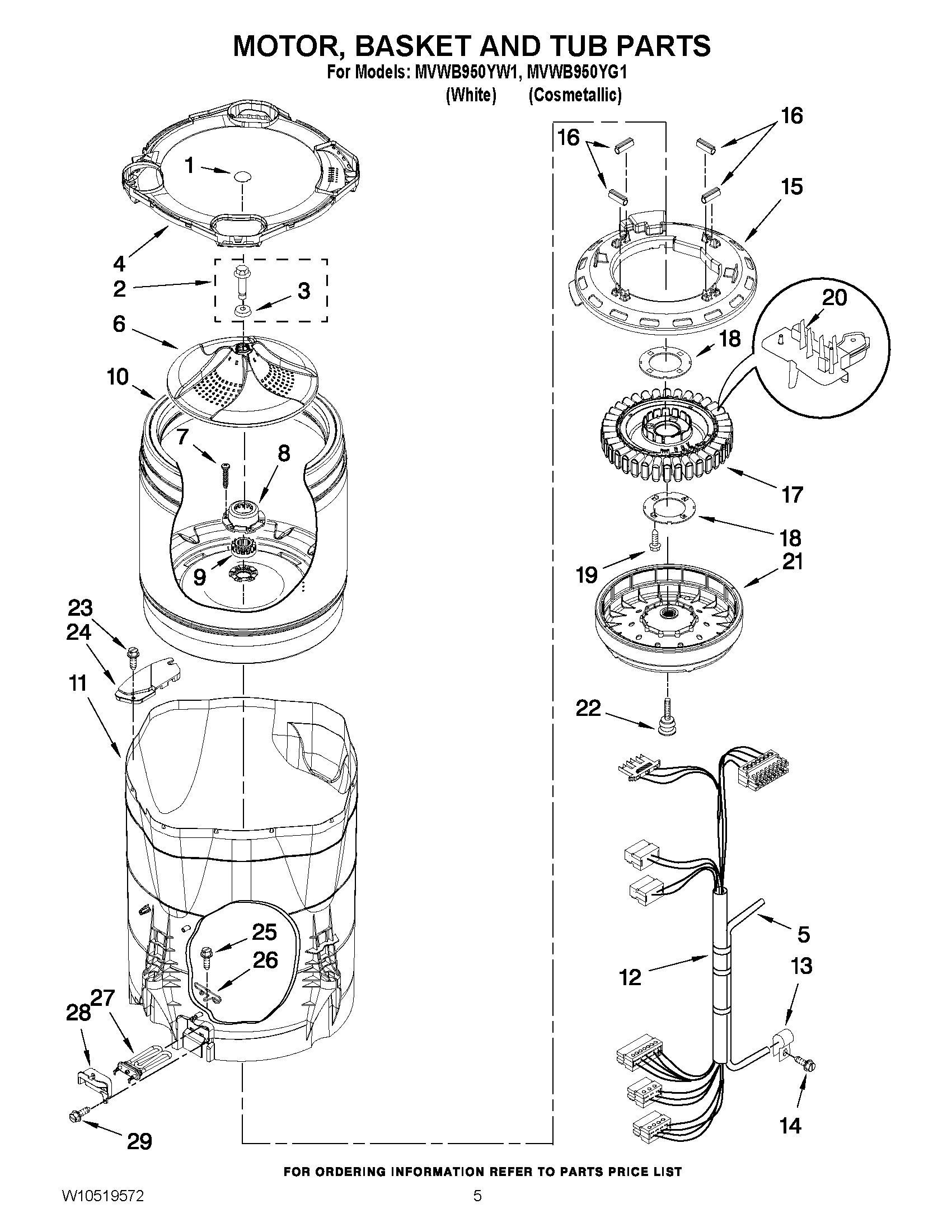

MVWB950YW1 03 – MOTOR, BASKET AND TUB PARTS

MVWB950YW1 03 – MOTOR, BASKET AND TUB PARTS

Written by

in

MVWB950YW1 03 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10352675
2	MAY W10076270
3	MAY W10076260
4	MAY W10362224
5	MAY W10297449
6	MAY W10357576
7	SCREW
8	HUB, BASKET-DRIVEN
9	HUB, BASKET DRIVER
10	MAY W10356924
11	MAY W10381077
12	MAY W10297446
13	CLAMP, CABLE
14	Screw
15	SHIELD, DRIVE MOTOR
16	MAY 8565172
17	MAY W10419333
18	PLATE, STATOR
19	SCREW
20	MAY W10178988
21	ROTOR, MAIN DRIVE MOTOR
22	LINER (NOT A SERVICEABLE PART)
23	Screw
24	MAY W10222008
25	SCREW
26	MAY W10134571
27	MAY W10325894
28	MAY W10297450
29	SCREW
