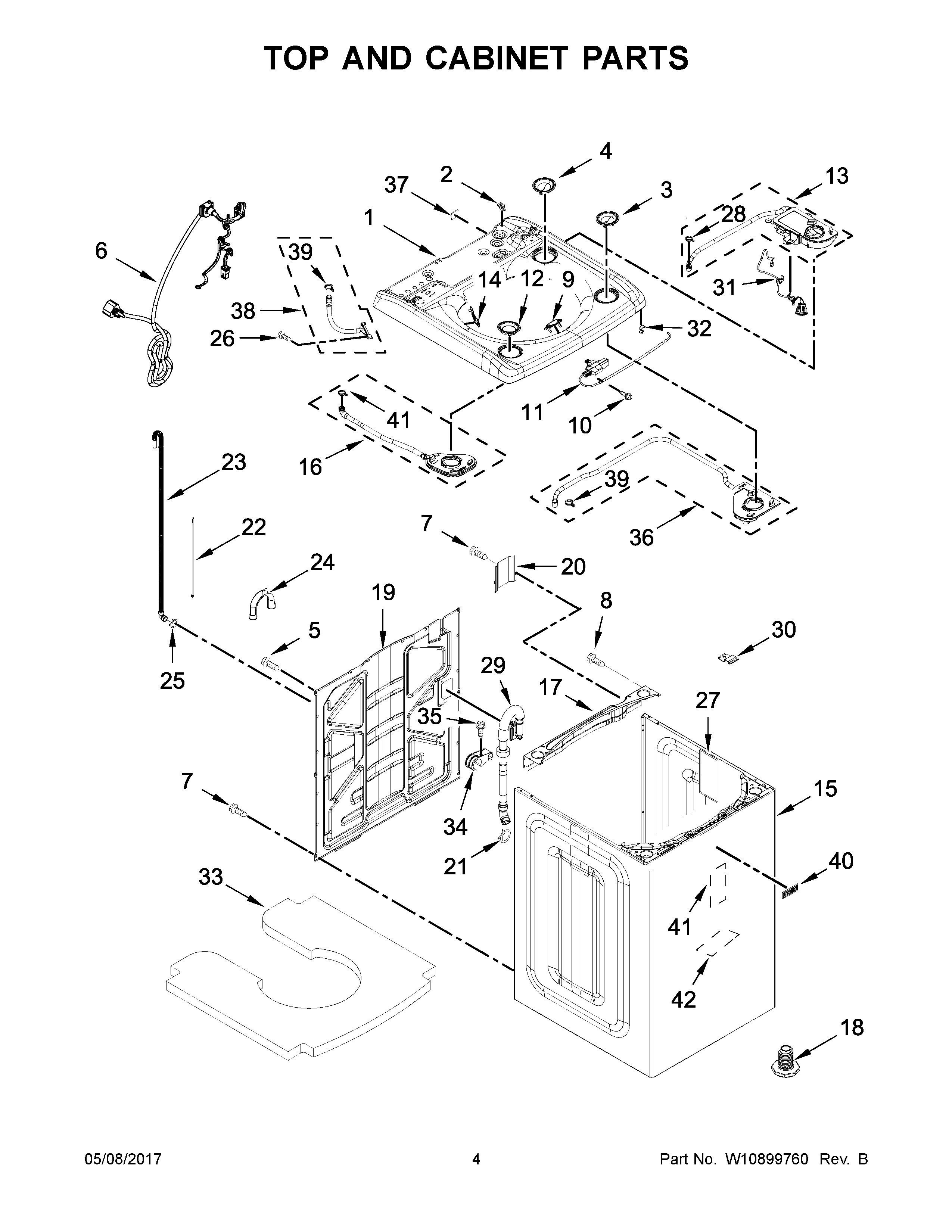

MVWB955FC0 03 – TOP AND CABINET PARTS

Products

Position	Product
1	TOP (WHITE)
1A	TOP (CHROME SHADOW)
2	MAY W10711050
3A	BEZEL, FABRIC SOFTENER DISPENSER (GREY)
3	BEZEL, FABRIC SOFTENER DISPENSER (WHITE)
4	BEZEL, BLEACH DISPENSER (WHITE)
4A	BEZEL, BLEACH DISPENSER (GREY)
5	MAY 1157158
6	POWER CORD
7	Screw, 10-32 x 5/8
8	SCREW
9A	BEZEL, LID LOCK (GREY)
9	BEZEL, LID LOCK (WHITE)
10	MAY 8533961
11	ASSEMBLY, LID LOCK
12	BEZEL, DETERGENT DISPENSER (WHITE)
12A	BEZEL, DETERGENT DISPENSER (GREY)
13A	DISPENSER ASSEMBLY, BLEACH (GREY)
13	DISPENSER ASSEMBLY, BLEACH (WHITE)
14	BEZEL, FRESH FILL (CHROME)
15A	CABINET (CHROME SHADOW)
15	CABINET (WHITE)
16	DISPENSER ASSEMBLY, DETERGENT (WHITE)
16A	DISPENSER ASSEMBLY, DETERGENT (GREY)
17	CHANNEL, FRONT REAR
18	FOOT ASSEMBLY, LEVELING
19	PANEL, REAR
20	MAY W10676061
21	MAY W10142630
22	TIE, CABLE
23	HOSE, OUTER DRAIN
24	MAY W10280024
25	MAY 356138
26	SCREW, DISPENSER HOUSING MOUNTING
27	MAY 8564458
28	MAY 370451
29	HOSE, INTERNAL DRAIN
30	MAY W10248088
31	LIGHT ASSEMBLY, BASKET
32	Clip, Wire (4)
33	ABSORBER, SOUND
34	CLIP, HOSE
35	SCREW
36	DISPENSER ASSEMBLY, FABRIC SOFTENER (WHITE)
36A	DISPENSER ASSEMBLY, FABRIC SOFTENER (GREY)
37	TOP, FOAM SEAL
38	NOZZLE ASSEMBLY, FRESH FILL
39	MAY 371503
40	MAY W10612926
41	ABSORBER, IMPACT
42	MAY W10414221
