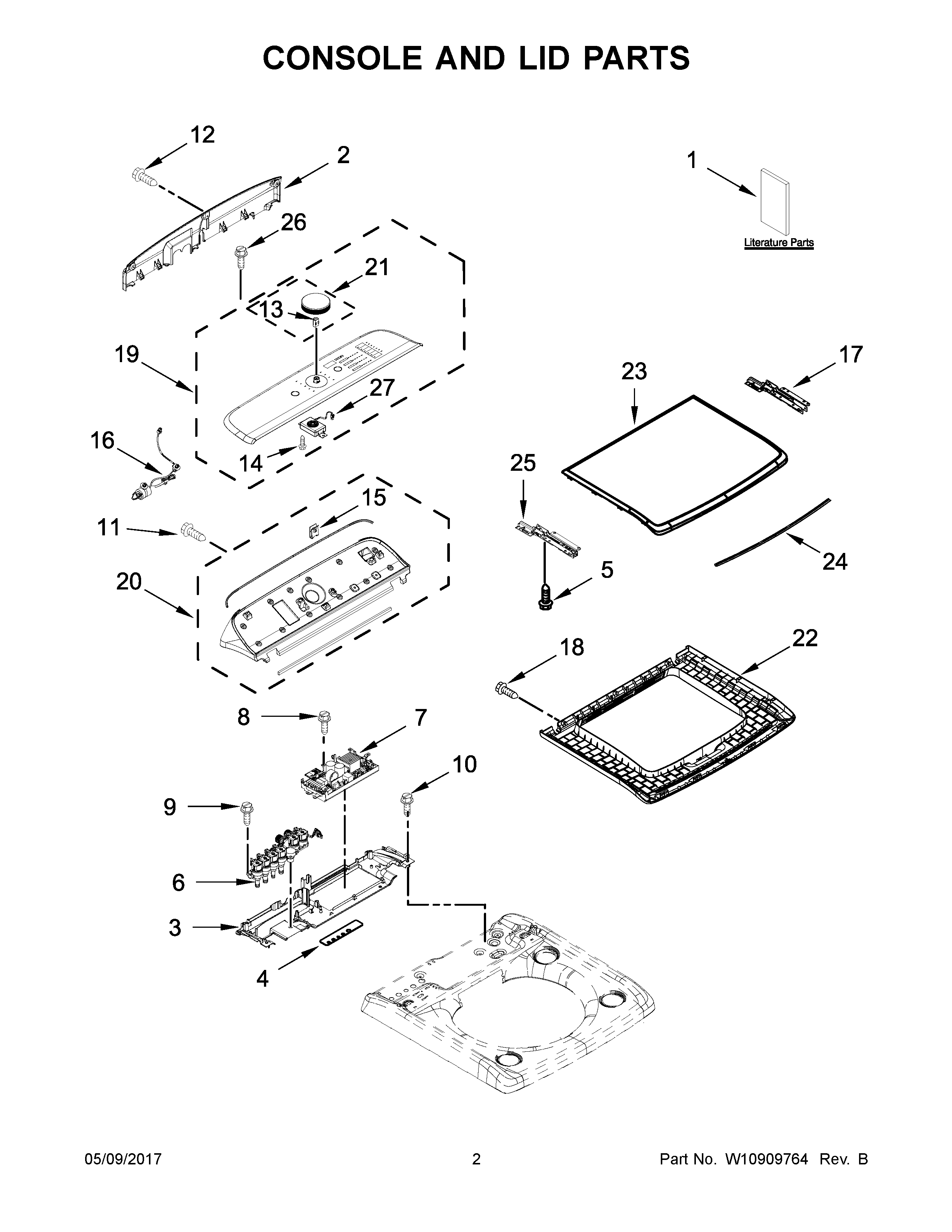

MVWB955FC1 02 – CONSOLE AND LID PARTS

Products

PositionProduct
1DQUICK START GUIDE
1CENERGY GUIDE
1BUSE AND CARE GUIDE
1AINSTALLATION INSTRUCTIONS
1TECH SHEET
2AREAR PANEL, CONSOLE (CHROME SHADOW)
2REAR PANEL, CONSOLE (WHITE)
3TRAY ASSEMBLY, LOWER REAR
4SEAL PAD, WATER VALVE
5SCREW
6VALVE ASSEMBLY (4 PORT)
7CONTROL UNIT
8Screw
9SCREW
10MAY 3387485
11MAY 12990204
12MAY W10567155
13CLIP, SPRING
14SCREW
15NUT, "U"
16HARNESS, USER INTERFACE
17HINGE, LID (RIGHT)
18SCREW
19ASSEMBLY, FASCIA (GREY)
20CONSOLE (INCLUDES SEALS) (WHITE)
20ACONSOLE (INCLUDES SEALS) (CHROME SHADOW)
21MAY W10830755
22LID FRAME, LOWER ASSEMBLY (WHITE)
22ALID FRAME, LOWER ASSEMBLY (GREY)
23LID ASSEMBLY, UPPER
24SEAL, LID
25HINGE, LID (LEFT)
26SCREW
27ASSEMBLY, SPEAKER
