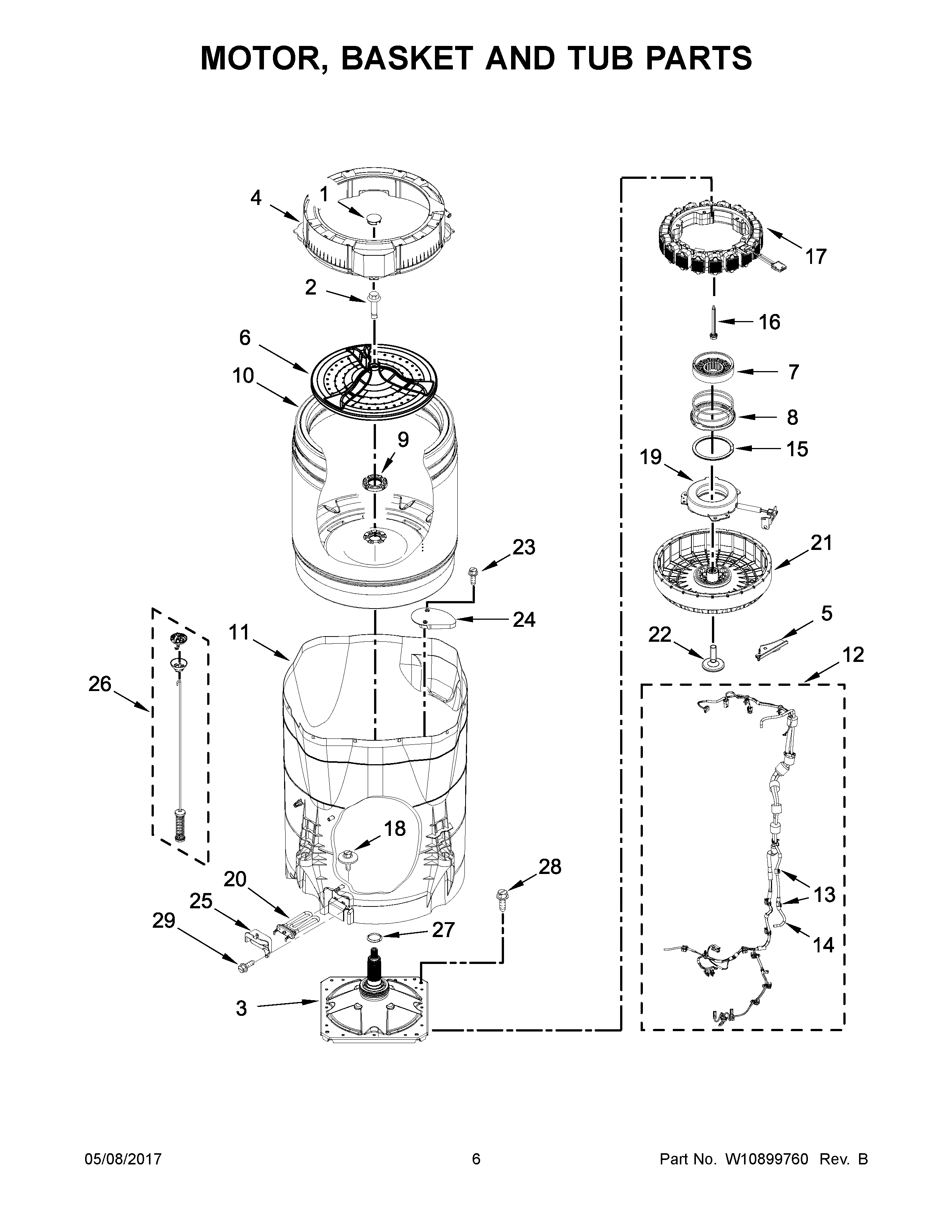

MVWB955FW0 04 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	CAP, IMPELLER
2	SCREW
3	DRIVE ASSEMBLY
4	TUB RING
5	SHIELD, MOTOR HARNESS
6	IMPELLER (WASHPLATE)
7	SLIDER
8	ASSEMBLY, SPRING
9	NUT, LOCK
10	BASKET ASSEMBLY
11	TUB
12	HARNESS, LOWER
13	CLAMP, CABLE
14	HOSE PRESSURE SWITCH
15	RING, SNAP
16	SCREW
17	STATOR, MOTOR
18	SCREW
19	ASSEMBLY, CLUTCH
20	MAY W10325894
21	ROTOR, MOTOR
22	SCREW
23	Screw
24	HOOD, DUAL PUMP
25	MAY W10297450
26	MAY W10901041
27	WASHER, THRUST
28	SCREW
29	SCREW
