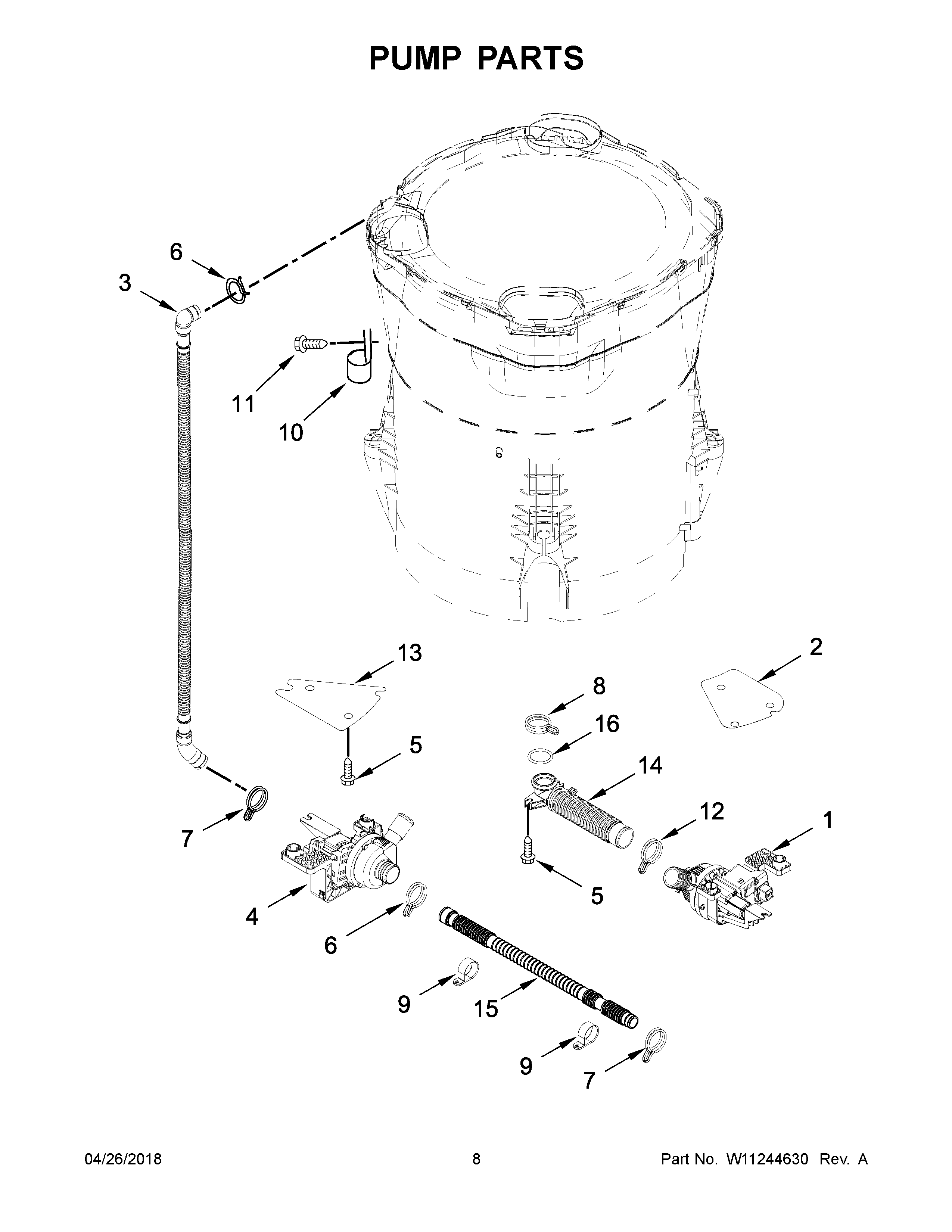

MVWB965HC0 05 – PUMP PARTS

Written by

Products

Position	Product
1	PUMP ASSEMBLY, DRAIN
2	SHIELD, HEAT
3	HOSE, RECIRCULATION
4	PUMP ASSEMBLY, RECIRCULATION
5	SCREW
6	CLAMP, HOSE
7	HOSE CLAMP
8	MAY 370445
9	CLAMP, CABLE
10	MAY 8534021
11	SCREW
12	MAY 8317496
13	SHIELD, RECIRCULATION PUMP
14	HOSE, TUB TO PUMP
15	HOSE, RECIRCULATION PUMP
16	O-RING
