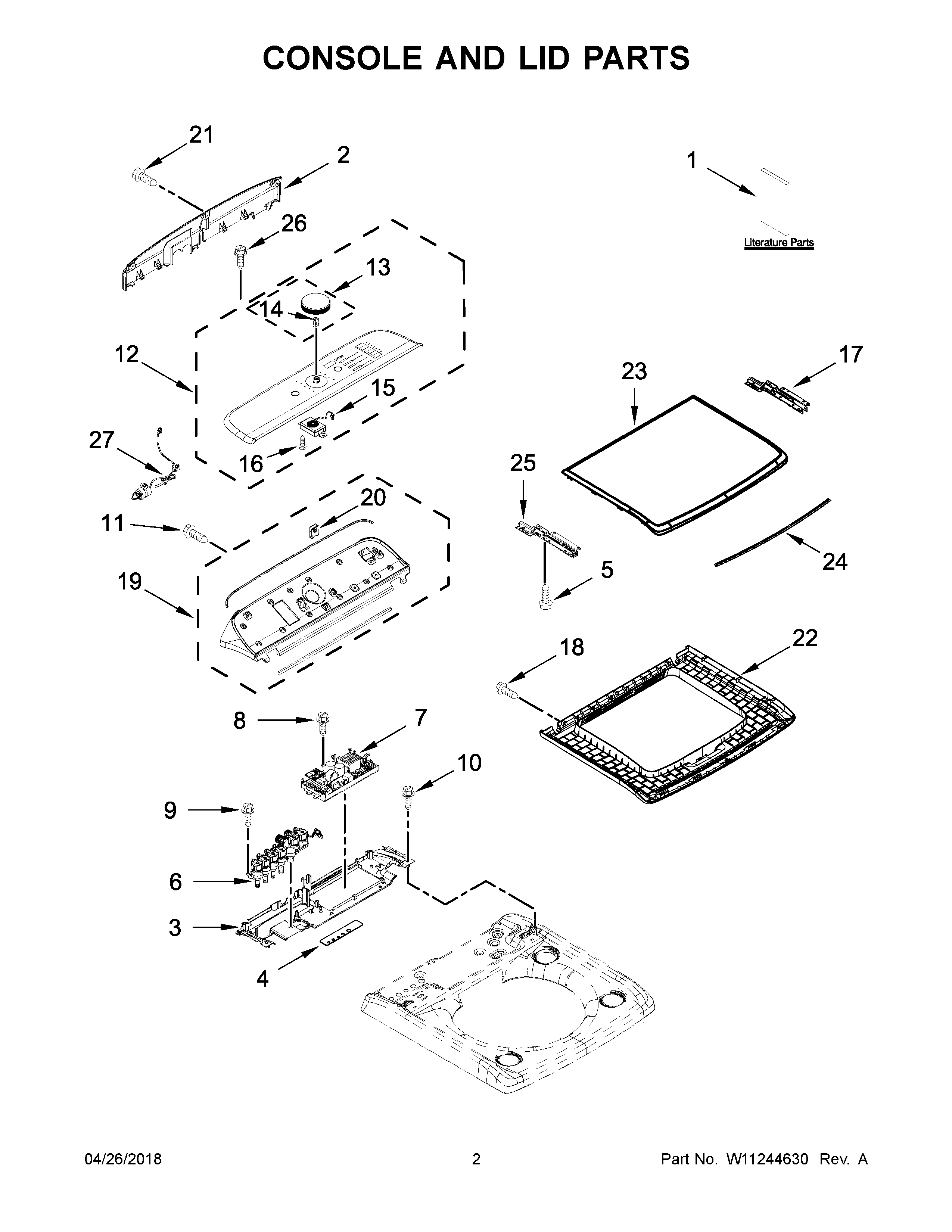

MVWB965HW0 02 – CONSOLE AND LID PARTS

MVWB965HW0 02 – CONSOLE AND LID PARTS

Written by

in

MVWB965HW0 02 – CONSOLE AND LID PARTS

Products

PositionProduct
1TECH SHEET
1EMAY W10494090
1DMAY W11236221
1CMAY W11196465
1BMAY W11196460
1AINSTALLATION INSTRUCTIONS
2REAR PANEL, CONSOLE (WHITE)
2AREAR PANEL, CONSOLE (CHROME SHADOW)
3TRAY ASSEMBLY, LOWER REAR
4SEAL PAD, WATER VALVE
5SCREW
6VALVE ASSEMBLY (4 PORT)
7MAY W11196392
8Screw
9SCREW
10MAY 3387485
11MAY 12990204
12ASSEMBLY, FASCIA (GREY)
13MAY W10830755
14CLIP, SPRING
15ASSEMBLY, SPEAKER
16MAY 9740849
17HINGE, LID (RIGHT)
18SCREW
19ACONSOLE (INCLUDES SEALS) (CHROME SHADOW)
19CONSOLE (INCLUDES SEALS) (WHITE)
20NUT, "U"
21MAY W10567155
22LID FRAME, LOWER ASSEMBLY (WHITE)
22ALID FRAME, LOWER ASSEMBLY (GREY)
23LID ASSEMBLY, UPPER
24SEAL, LID
25HINGE, LID (LEFT)
26SCREW
27HARNESS, USER INTERFACE
