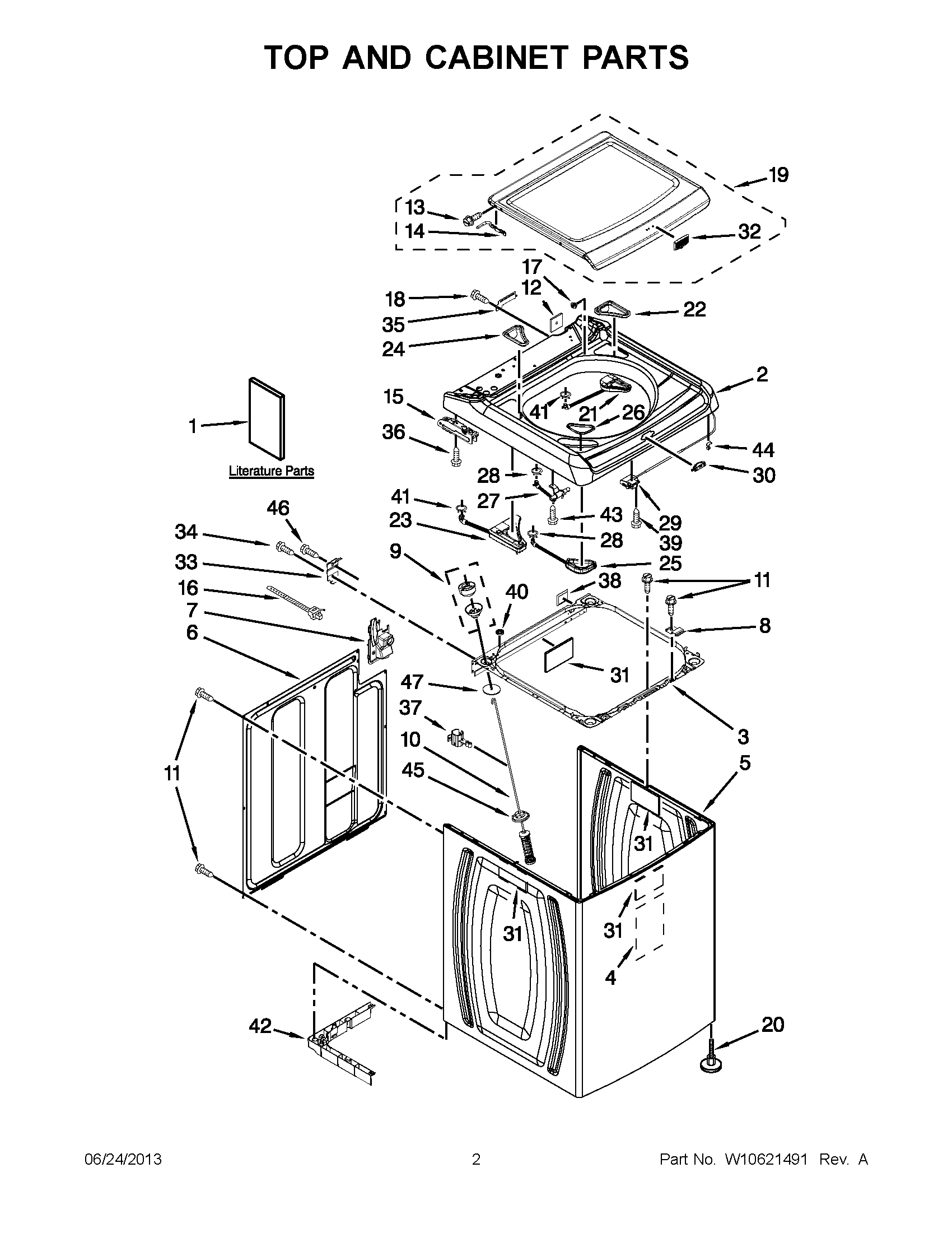

MVWB980BW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10403990
1	INSTALLATION INSTRUCTIONS
1	MAY W10550279
1	MAY W10303821
1	MAY W10550270
2	MAY W10552508
2	MAY W10552507
3	MAY W10386349
4	MAY W10414221
5	MAY W10304158
5	CABINET (WHITE)
6	MAY 8566090
7	MAY W10160572
8	MAY W10248088
9	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
10	MAY W10368626
11	MAY 1157158
12	TOP, FOAM SEAL
13	MAY W10442074
14	MAY W10544328
14	MAY W10544329
15	MAY W10492005
15	MAY W10492004
16	CABLE TIE
17	MAY W10119519
18	SCREW
19	MAY W10496560
19	MAY W10494877
20	MAY W10363890
21	MAY W10553370
22	Bezel, Fabric Softener Dispenser (White)
22	BEZEL, FABRIC SOFTENER DISPENSER (GRAY)
23	MAY W10554110
24	MAY W10391564
24	BEZEL, BLEACH DISPENSER (WHITE)
25	MAY W10552116
26	Bezel, Detergent Dispenser (White)
26	BEZEL, DETERGENT DISPENSER (GRAY)
27	MAY W10552206
28	MAY 371503
29	MAY W10059230
30	Bezel, Lid Lock (White)
30	BEZEL, LID LOCK (GRAY)
31	MAY 8564458
32	MAY W10323735
33	MAY W10432012
34	SCREW
35	MAY 8563941
36	Screw
37	MAY 8543784
38	MAY 8578386
39	SCREW
40	MAY 8576476
41	MAY 370451
42	MAY W10370995
42	MAY W10378013
42	MAY W10378012
42	MAY W10370996
43	SCREW, DISPENSER HOUSING MOUNTING
44	Clip, Wire (4)
45	MAY 8564017
46	Screw, 10-32 x 5/8
47	MAY 8577896
