MVWC200BW1 03 – CONTROLS AND WATER INLET PARTS
Written by
in

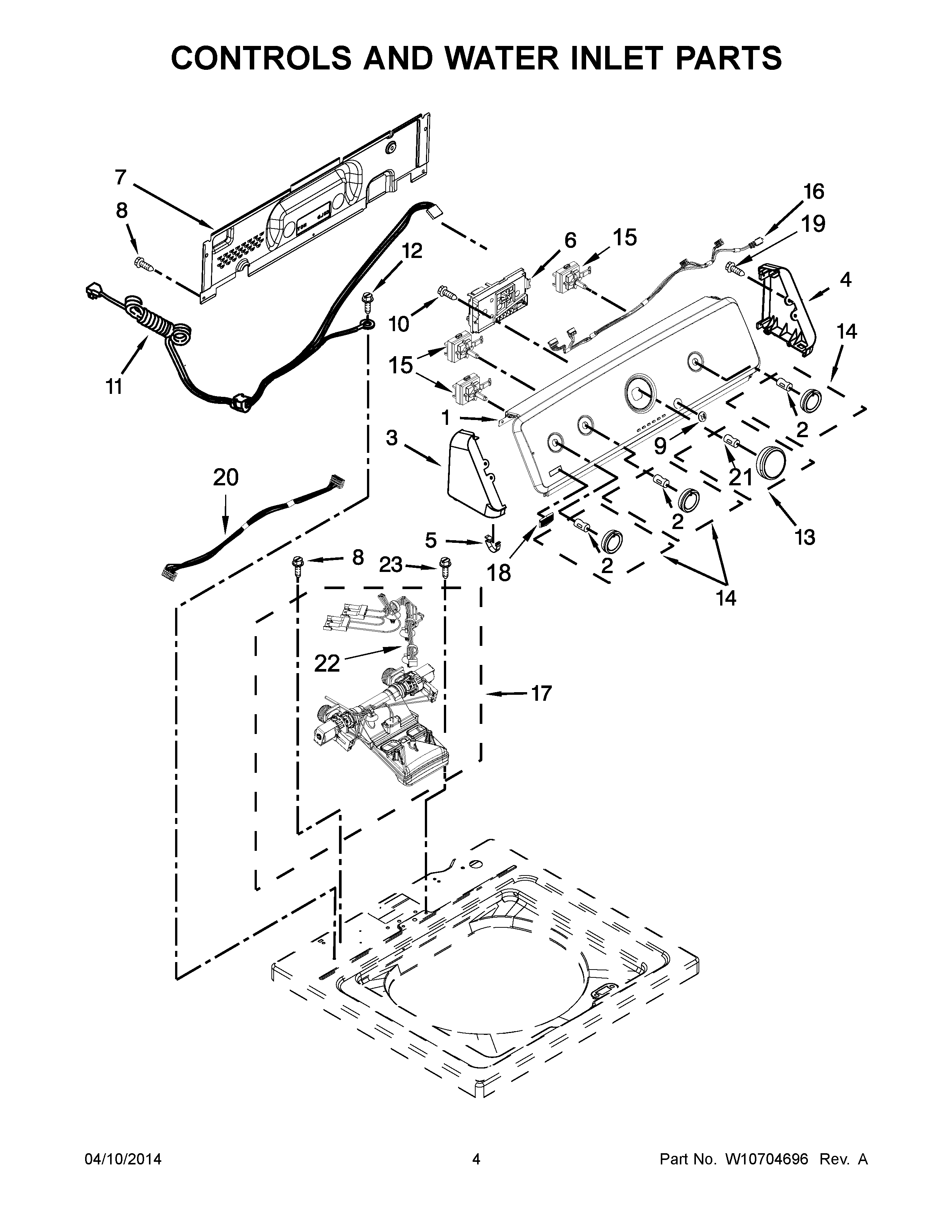

MVWC200BW1 03 – CONTROLS AND WATER INLET PARTS
Products
Position
Product
1
MAY W10468416
2
CLIP, SPRING
3
Endcap (L.H.)
4
Endcap (R.H.)
5
MAY 8312709
6
MAY W10671330
7
MAY W10461159
8
MAY 1157158
9
MAY W10584360
10
SCREW,8-18 X 3/8
11
MAY W10525194
12
Screw, 10-32 x 5/8
13
MAY W10558463
14
MAY W10562155
15
SWITCH, ROTARY ENCODER
16
MAY W10291177
17
MAY W10501149
18
MAY W10199708
19
MAY 359625
20
MAY W10291184
21
Spring, Clip Knob
22
MAY W10423127
23
Screw
←
