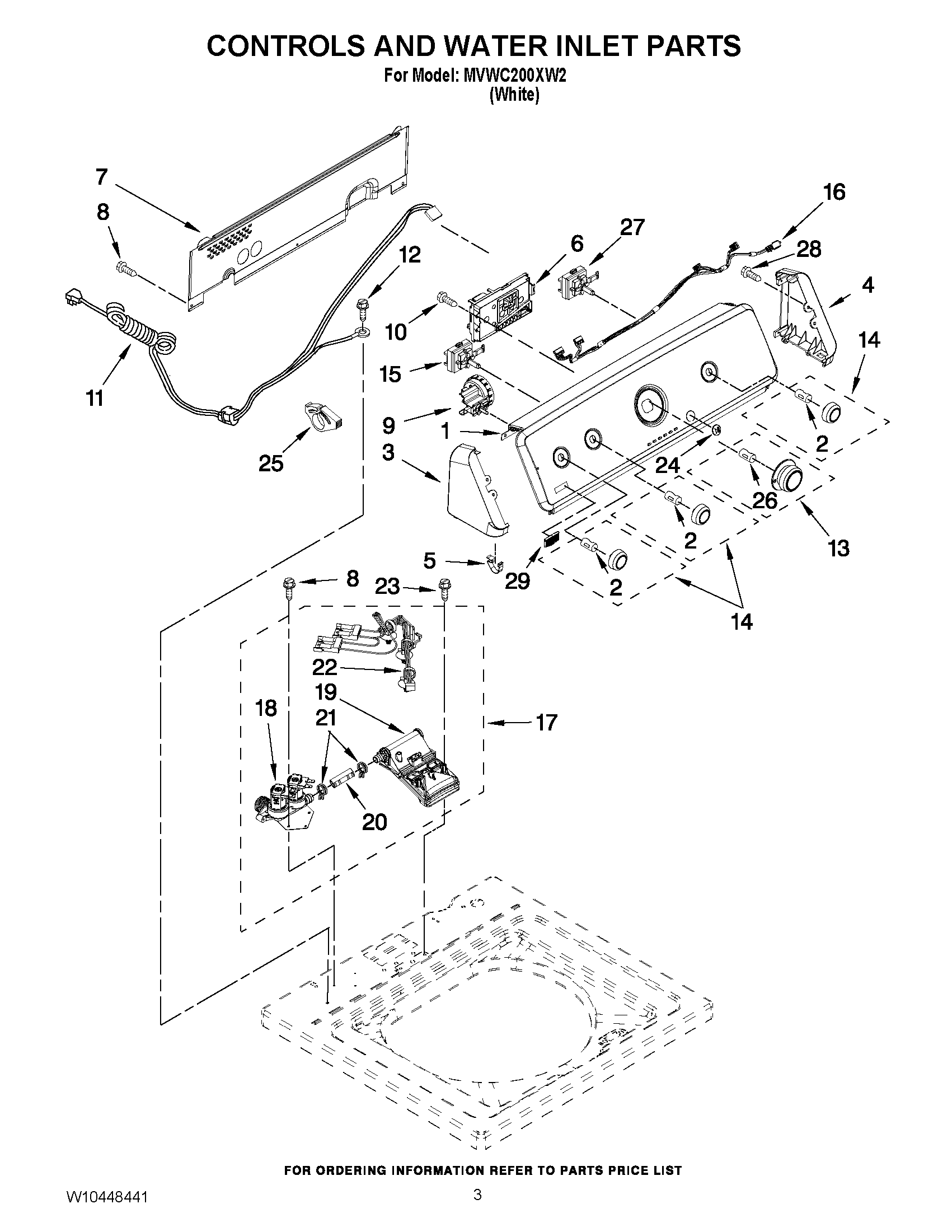

MVWC200XW2 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10251333
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10438176
7MAY W10420985
8MAY 1157158
9MAY W10268911
10SCREW,8-18 X 3/8
11MAY W10276649
12Screw, 10-32 x 5/8
13ASSEMBLY, KNOB & DIAL (GREY)
14ASSEMBLY, CONTROL KNOB (GREY)
15SWITCH, ROTARY ENCODER
16MAY W10291175
17MAY W10432353
18MAY W10356257
19MAY W10334611
20MAY W10238347
21MAY W10117298
22MAY W10344775
23Screw
24MAY W10251309
25CLAMP, HOSE
26Spring, Clip Knob
27MAY W10285511
28MAY 359625
29MAY W10323734
