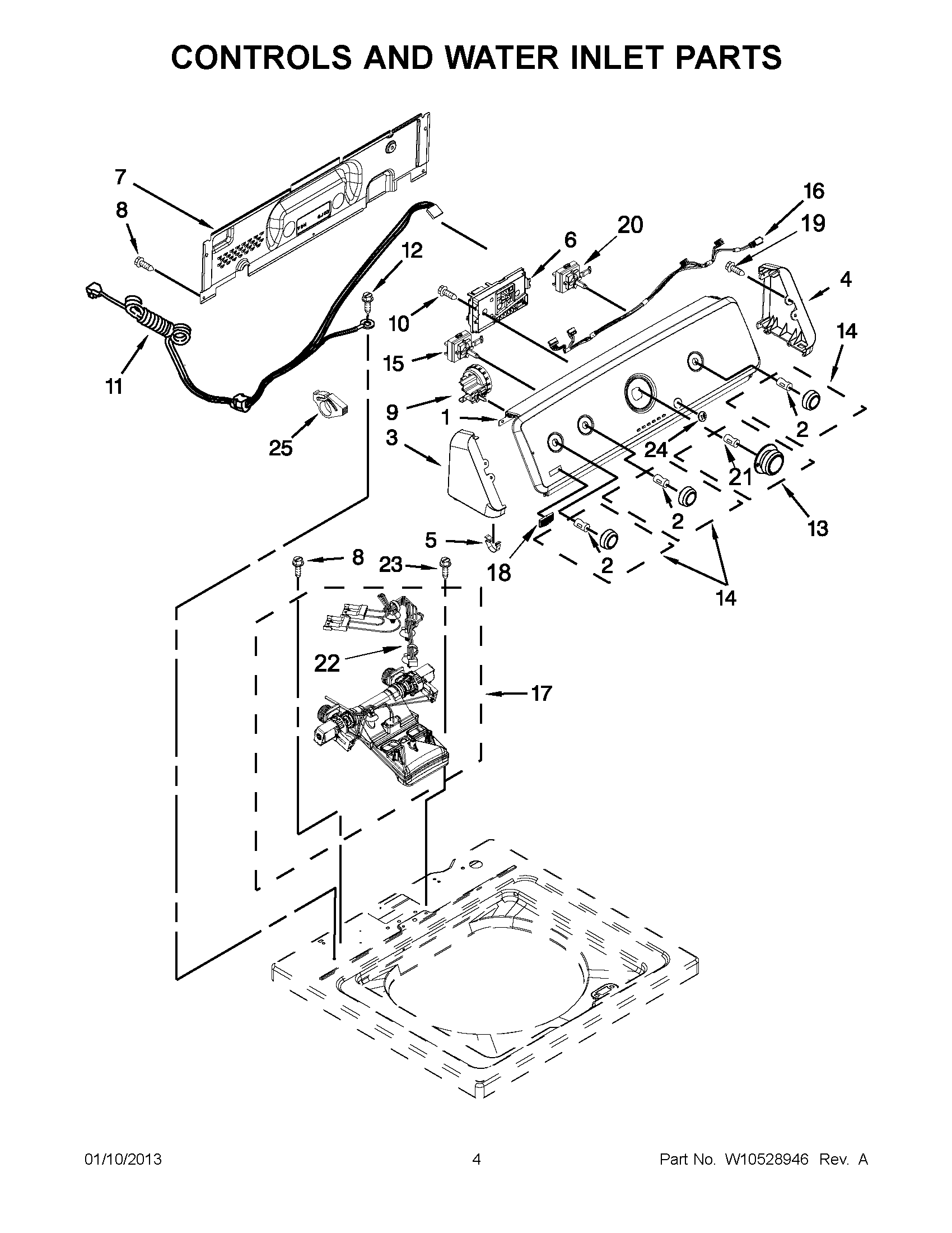

MVWC200XW3 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10251333
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10480178
7MAY W10461159
8MAY 1157158
9MAY W10268911
10SCREW,8-18 X 3/8
11MAY W10525194
12Screw, 10-32 x 5/8
13ASSEMBLY, KNOB & DIAL (GREY)
14ASSEMBLY, CONTROL KNOB (GREY)
15SWITCH, ROTARY ENCODER
16MAY W10291175
17MAY W10423125
18MAY W10323734
19MAY 359625
20MAY W10285511
21Spring, Clip Knob
22MAY W10423127
23Screw
24MAY W10251309
25CLAMP, HOSE
