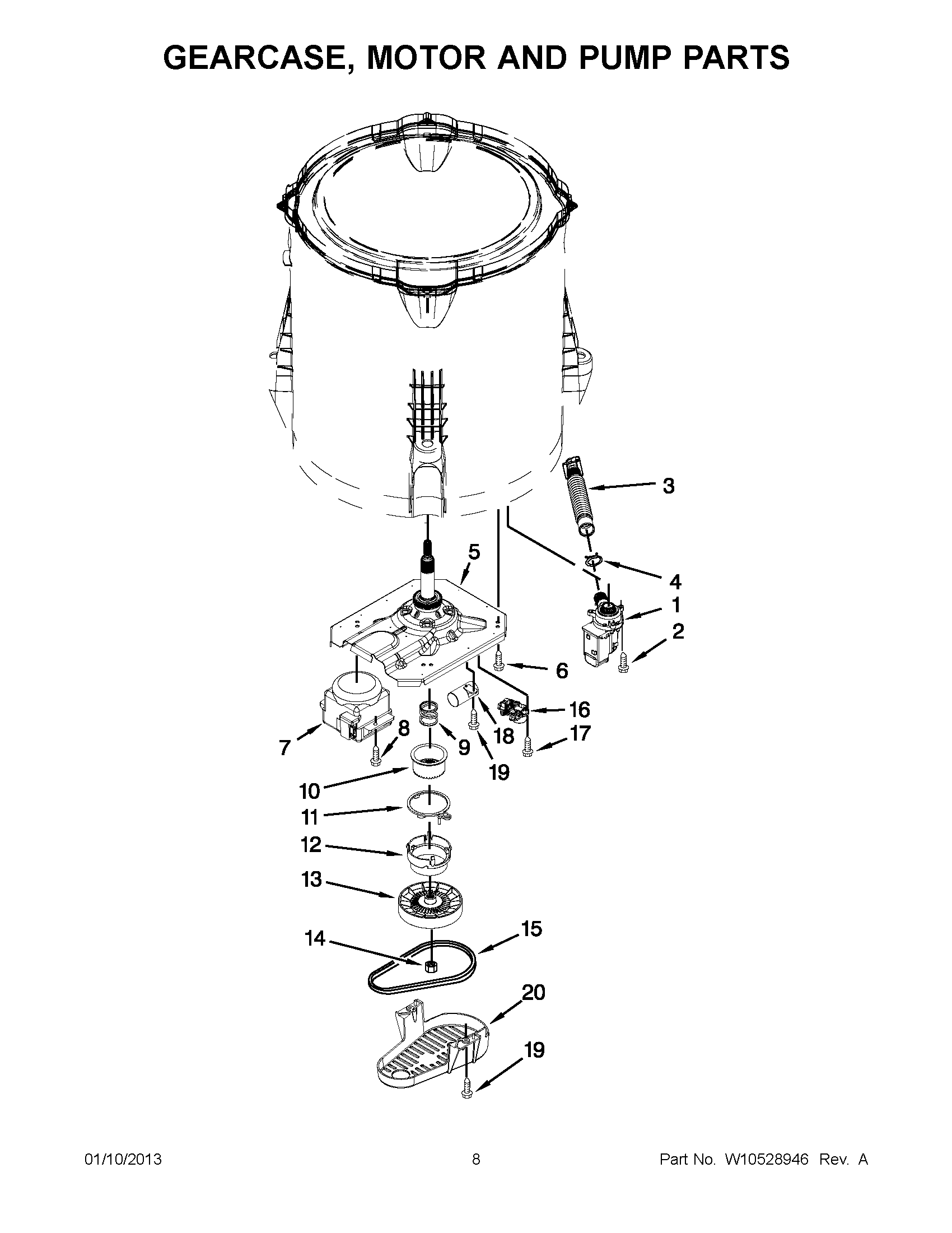

MVWC200XW3 04 – GEARCASE, MOTOR AND PUMP PARTS

MVWC200XW3 04 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC200XW3 04 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1MAY W10276397
2SCREW
3MAY W10215091
4MAY 8317496
5MAY W10473143
6SCREW
7MAY W10416655
8BOLT, COUNTERWEIGHT
9SPRING, SPLUTCH
10SLIDER, SPLUTCH
11CAM RING, SPLUTCH
12CAM, SPLUTCH
13MAY W10006356
14MAY W10163336
15MAY W10006384
16MAY W10006355
17SCREW
18MAY W10390451
19SCREW
20MAY W10427633
