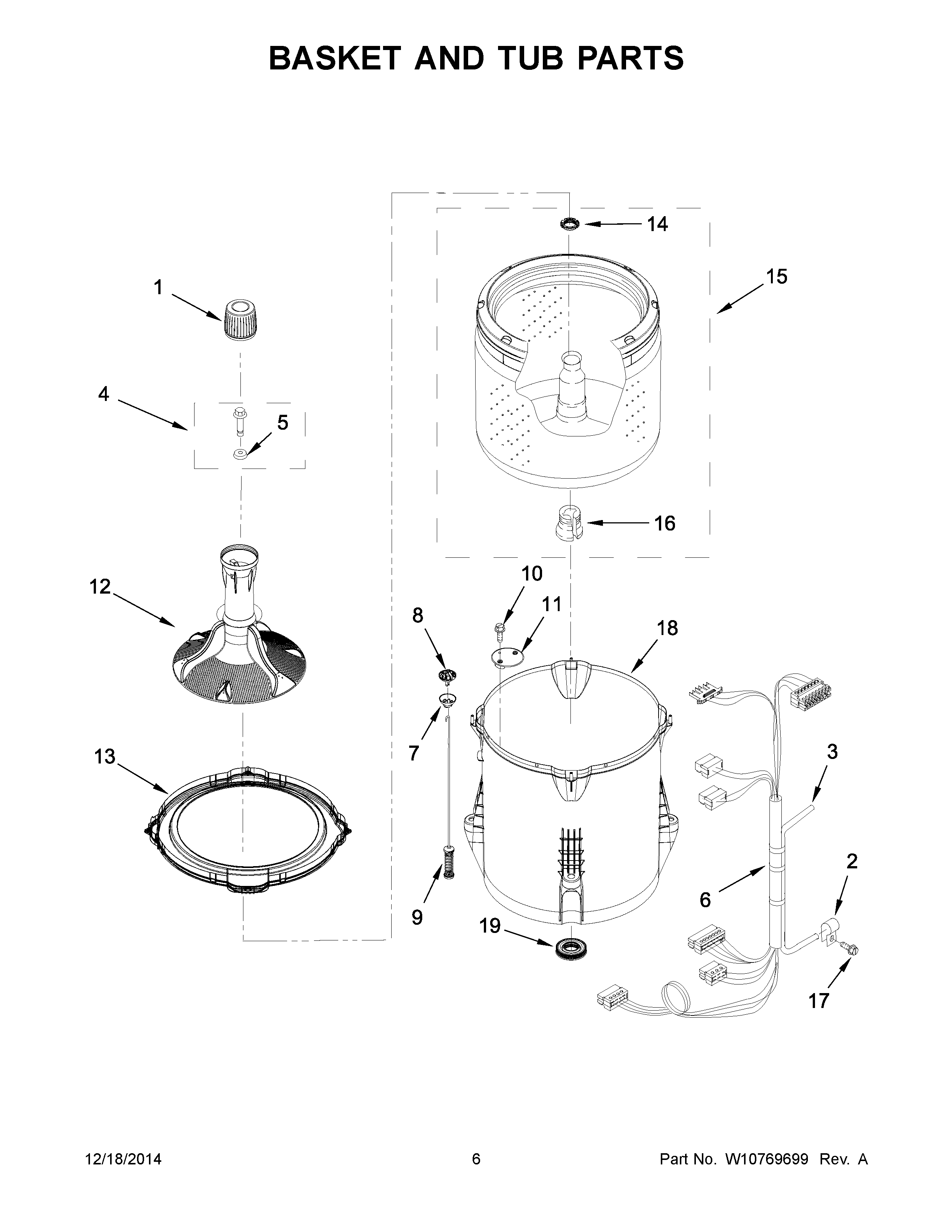

MVWC215EW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10680195
2CLAMP, CABLE
3MAY 8572540
4SCREW & WASHER
5MAY 3949550
6HARNESS, LOWER
7BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
8BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
9MAY W10537442
10Screw
11MAY W10215093
12AGITATOR
13MAY W10531289
14MAY 21366
15MAY W10554251
16Block, Drive
17SCREW
18TUB (INCLUDES TUB SEAL)
19MAY W10006371
