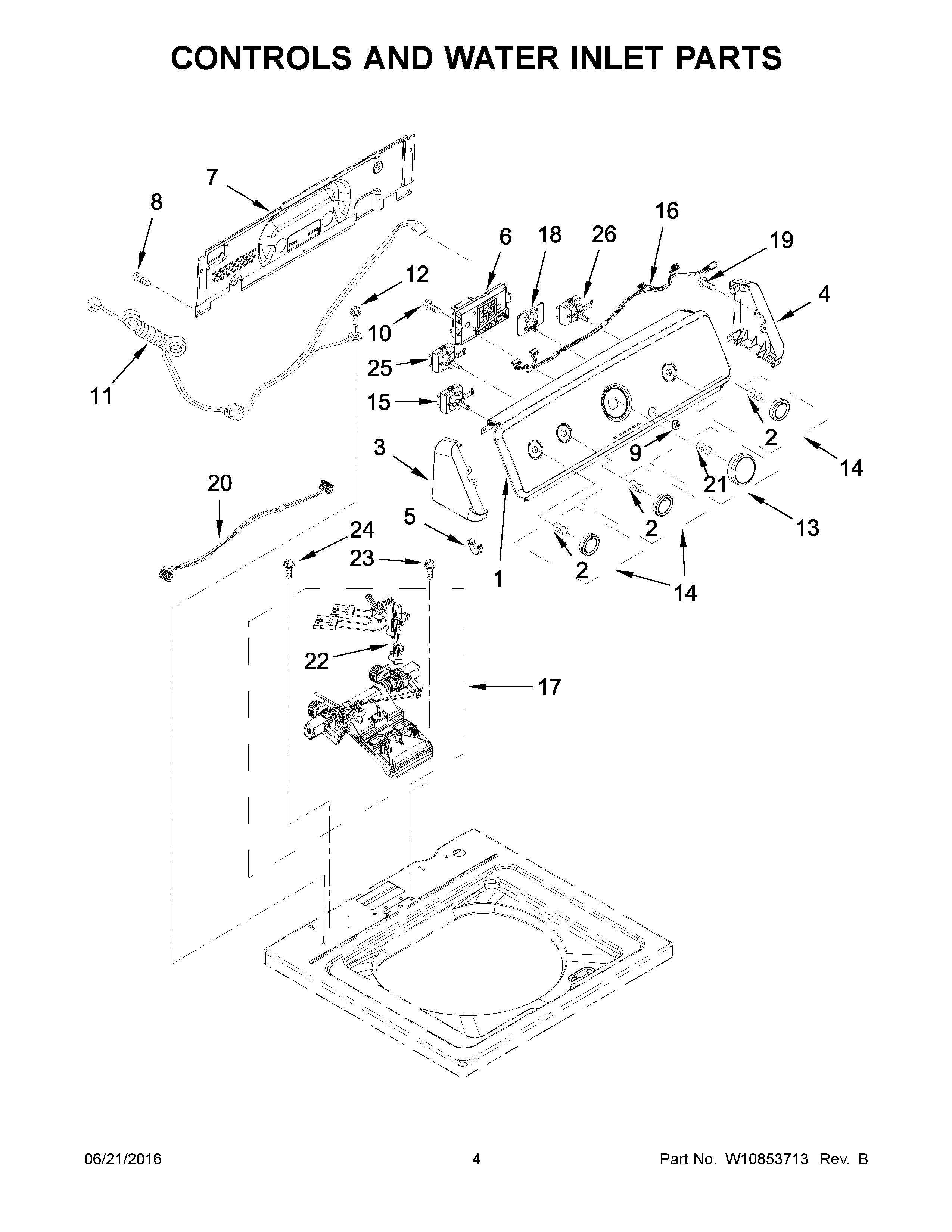

MVWC215EW1 03 – CONTROLS AND WATER INLET PARTS

MVWC215EW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

MVWC215EW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10692537
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10779755
7MAY W10461159
8MAY 1157158
9MAY W10584360
10SCREW,8-18 X 3/8
11CORD, POWER
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15SWITCH, ROTARY ENCODER
16HARNESS, UPPER
17MAY W10701459
18MAY W10593638
19MAY 359625
20MAY W10694682
21Spring, Clip Knob
22MAY W10678671
23MAY 8533971
24MAY W10213953
25MAY W10285518
26MAY W10285511
