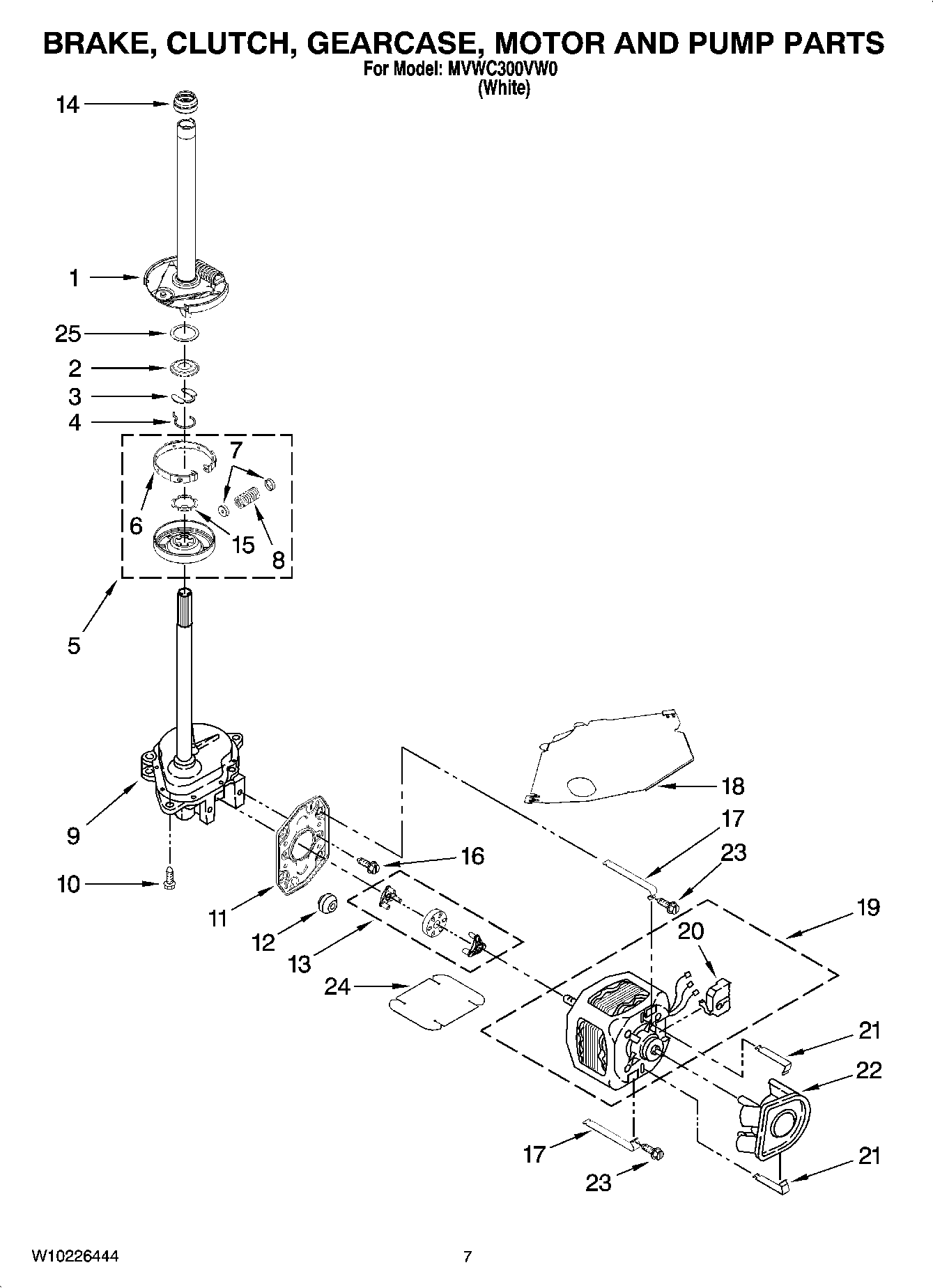

MVWC300VW0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

MVWC300VW0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC300VW0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1MAY 388952
2MAY 63292
3MAY 62697
4MAY 63283
5MAY 8299642
6Band & Lining Assembly
7MAY 62646
8MAY 8559387
9MAY W10140301
10Screw, 5/16-24 x 5/8
11MAY 62611
12MAY 62691
13MAY 3978849
14MAY 8577374
15MAY 3355454
16MAY 3400516
17MAY W10086010
18MAY 3362089
19Motor, Main Drive
20MAY 3952056
21Retainer, Pump
22MAY 3363394
23MAY 3387485
24MAY 3946532
25MAY 8578981
