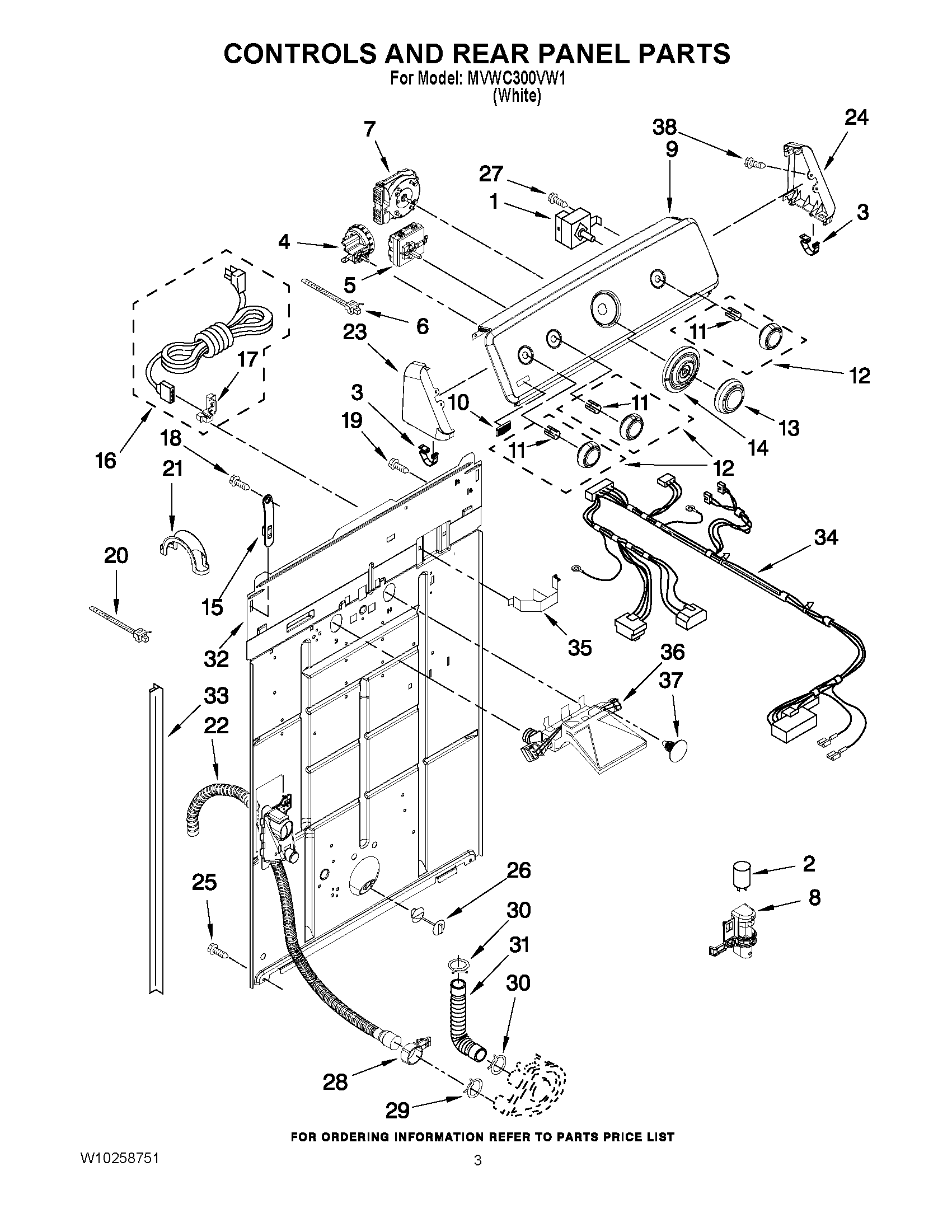

MVWC300VW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Switch, Rotary
2	MAY 8572717
3	MAY 8312709
4	MAY W10231402
5	MAY W10202616
6	MAY W10231379
7	MAY W10175557
8	MAY 8318046
9	MAY W10089728
10	MAY W10101390
11	CLIP, SPRING
12	MAY W10180218
13	Knob, Timer (Grey/Chrome)
14	Dial, Timer (Circular Brush)
15	Strap, Console
16	Cord, Power
17	MAY 3952821
18	SCREW
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	TIE, CABLE
21	U-Bend
22	MAY W10189267
23	Endcap (L.H.)
24	Endcap (R.H.)
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	SCREW
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY W10194450
33	MAY 62747
34	MAY W10214216
35	Clip, Harness & Pressure Switch
36	MAY W10144820
37	RETAINER, PUSH-IN
38	MAY 359625
