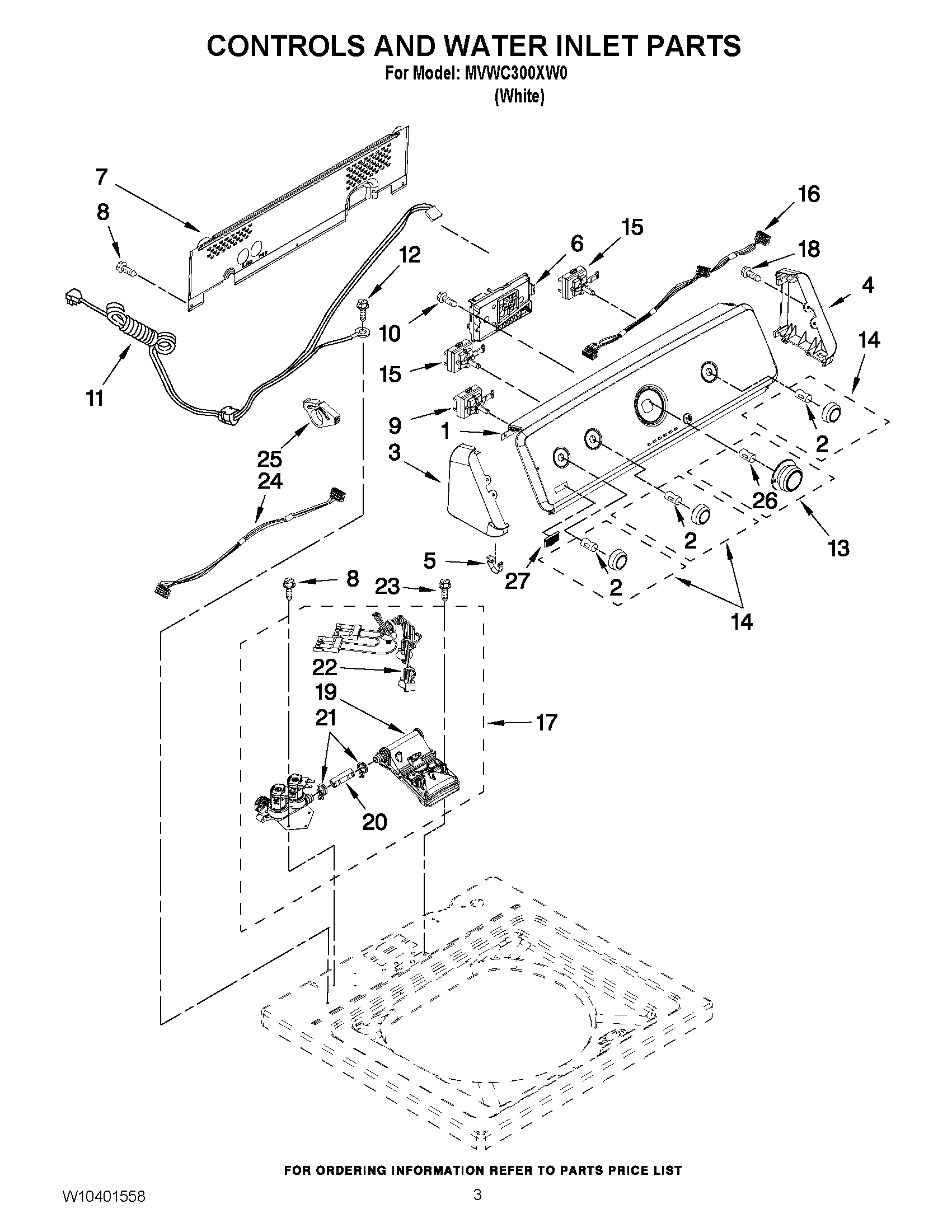

MVWC300XW0 02 – CONTROLS AND WATER INLET PARTS

MVWC300XW0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

MVWC300XW0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10251336
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10367790
7MAY W10251310
8MAY 1157158
9MAY W10285518
10SCREW,8-18 X 3/8
11MAY W10276649
12Screw, 10-32 x 5/8
13ASSEMBLY, KNOB & DIAL (GREY)
14ASSEMBLY, CONTROL KNOB (GREY)
15MAY W10285511
16MAY W10291177
17MAY W10357184
18MAY 359625
19MAY W10334611
20MAY W10238347
21MAY W10117298
22MAY W10337345
23Screw
24MAY W10291184
25CLAMP, HOSE
26Spring, Clip Knob
27MAY W10323734
