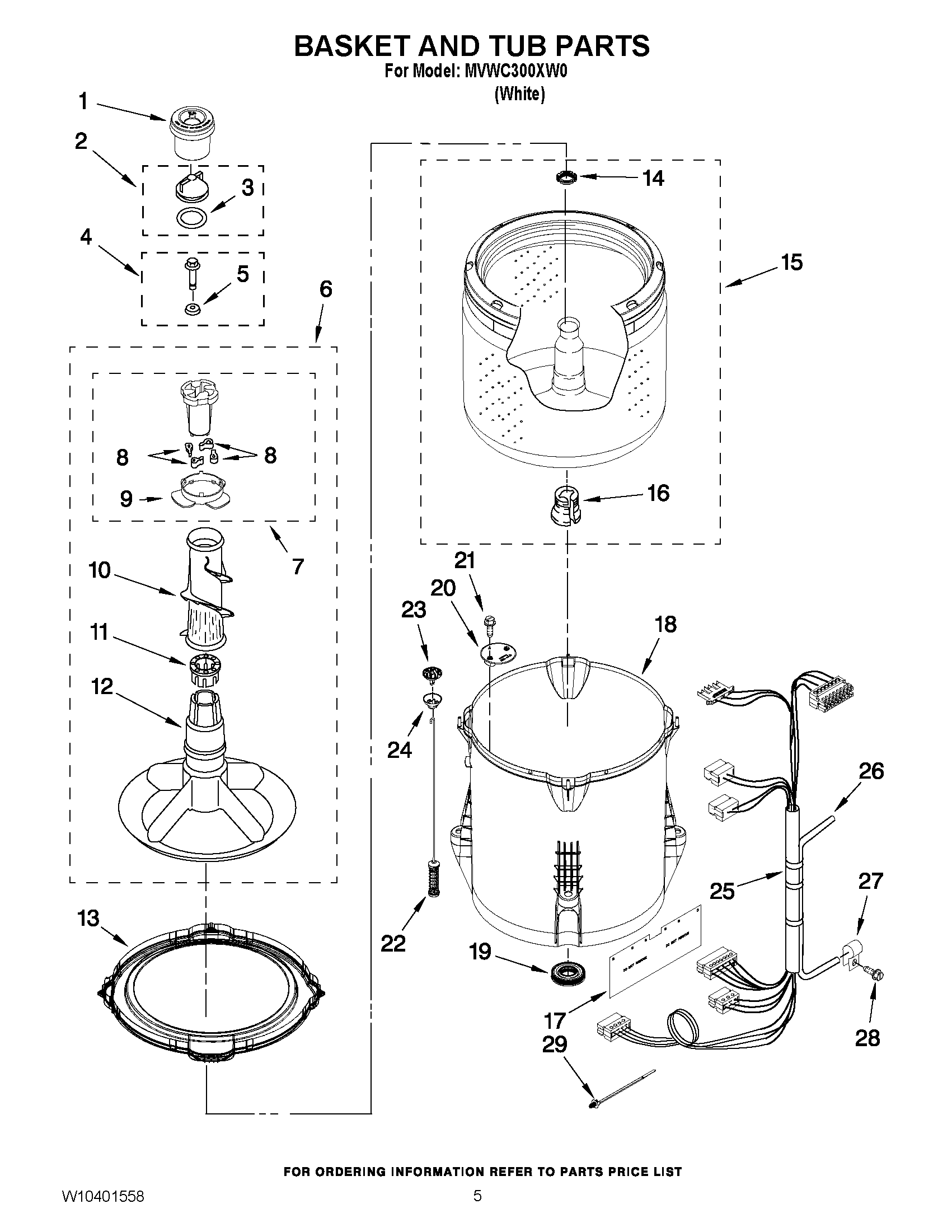

MVWC300XW0 03 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8575076
2	MAY 3354733
3	MAY W10072840
4	SCREW & WASHER
5	MAY 3949550
6	MAY 3348117
7	MAY 3948431
8	Dog, Agitator (4)
9	BEARING, CAM
10	MOVER, CLOTHES
11	SPACER, THRUST
12	MAY 3347288
13	MAY W10215108
14	MAY 21366
15	MAY W10358261
16	Block, Drive
17	MAY W10339098
18	TUB (INCLUDES TUB SEAL)
19	MAY W10006371
20	MAY W10215093
21	Screw
22	MAY W10110313
23	BALL, SUSPENSION (SET OF 4 – INCLUDES ITEM 24)
24	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
25	MAY W10297440
26	HOSE, PRESSURE SWITCH
27	CLAMP, CABLE
28	SCREW
29	MAY W10298887
