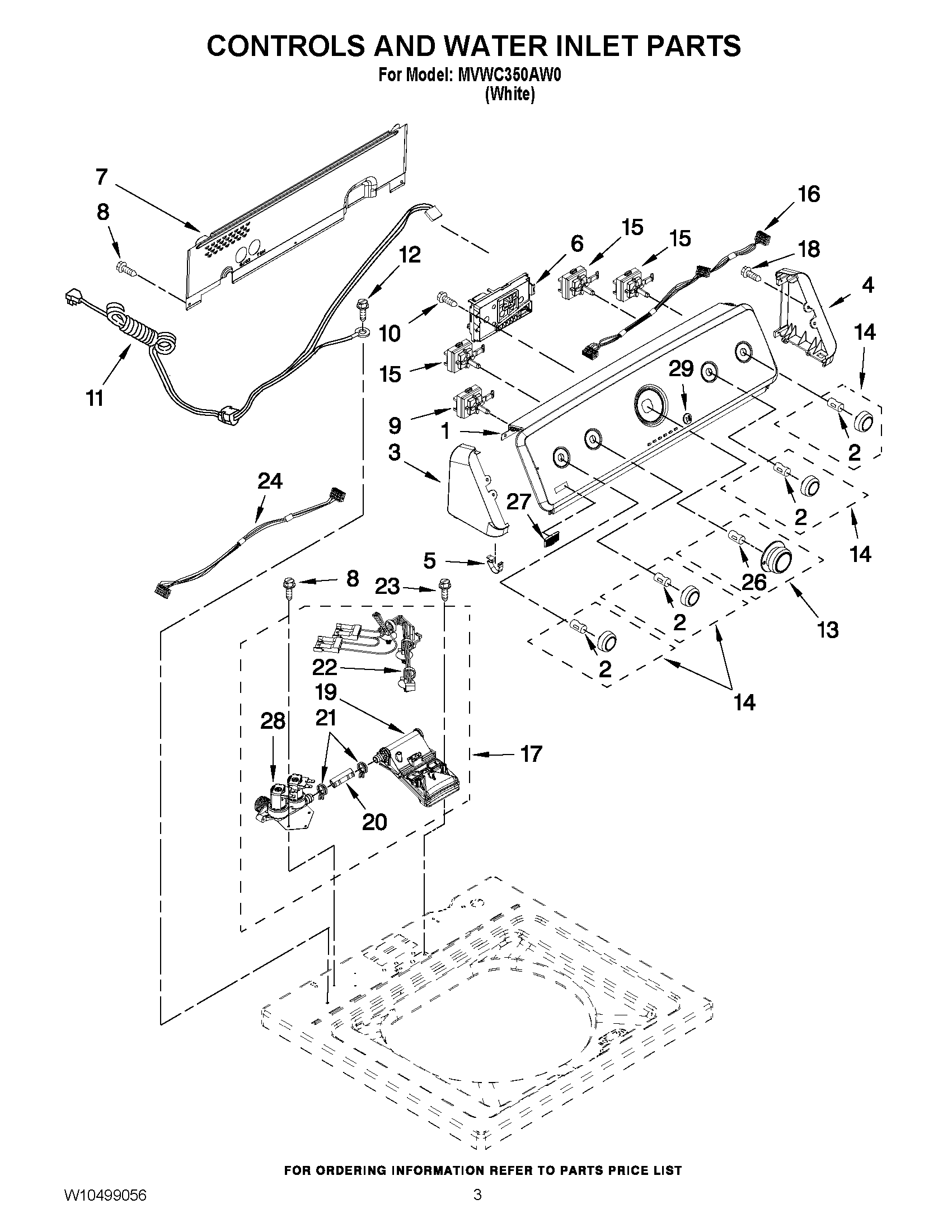

MVWC350AW0 02 – CONTROLS AND WATER INLET PARTS

MVWC350AW0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

MVWC350AW0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10468348
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10484689
7MAY W10420985
8MAY 1157158
9MAY W10285518
10SCREW,8-18 X 3/8
11MAY W10276649
12Screw, 10-32 x 5/8
13ASSEMBLY, KNOB & DIAL (GREY)
14ASSEMBLY, CONTROL KNOB (GREY)
15MAY W10285511
16MAY W10291177
17MAY W10432353
18MAY 359625
19MAY W10441423
20MAY W10238347
21MAY W10117298
22MAY W10344775
23Screw
24MAY W10291184
26Spring, Clip Knob
27MAY W10323734
28MAY W10356257
29MAY W10251309
