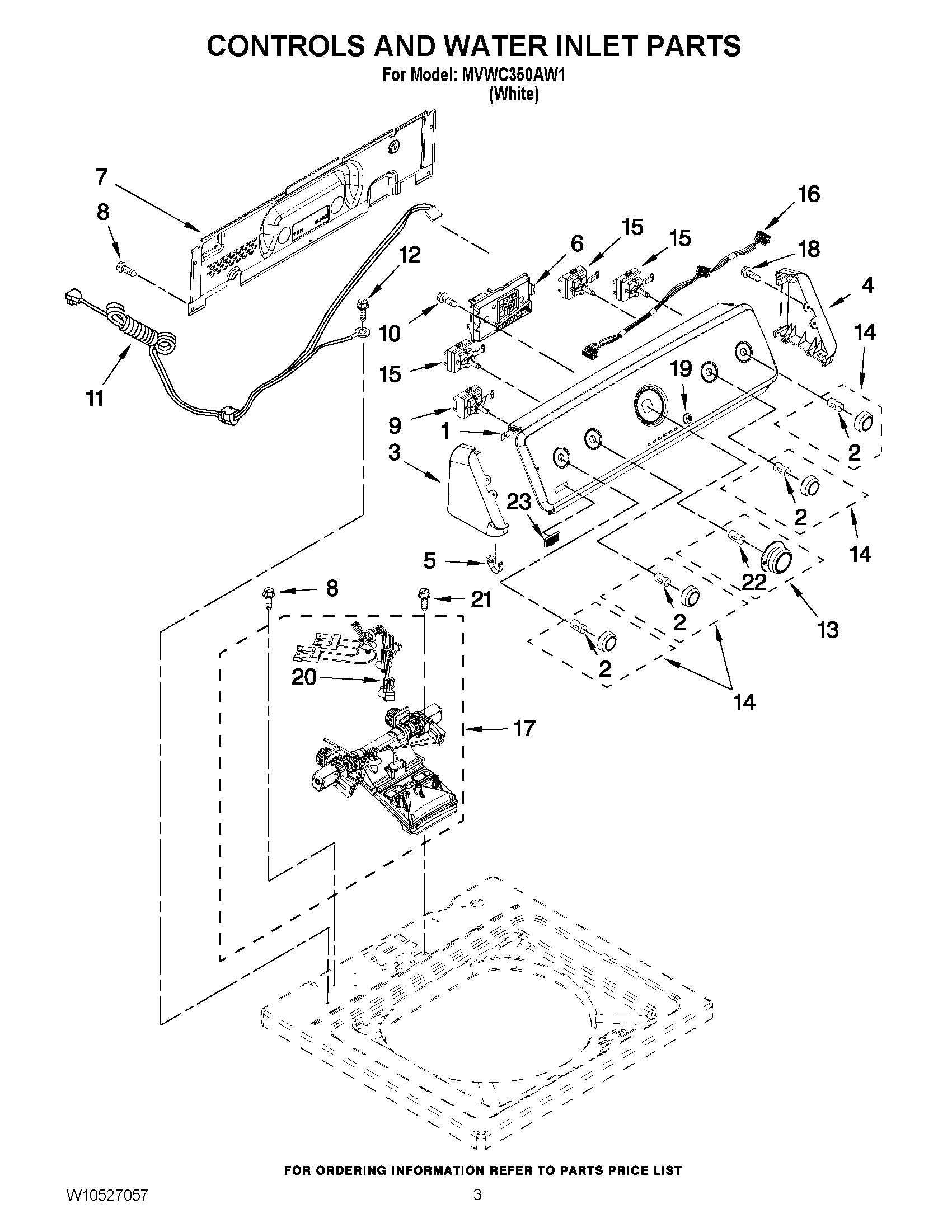

MVWC350AW1 02 – CONTROLS AND WATER INLET PARTS

MVWC350AW1 02 – CONTROLS AND WATER INLET PARTS

Written by

in

MVWC350AW1 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10468348
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10484689
7MAY W10461159
8MAY 1157158
9MAY W10285518
10SCREW,8-18 X 3/8
11MAY W10276649
12Screw, 10-32 x 5/8
13ASSEMBLY, KNOB & DIAL (GREY)
14ASSEMBLY, CONTROL KNOB (GREY)
15MAY W10285511
16MAY W10291177
17MAY W10423125
18MAY 359625
19MAY W10251309
20MAY W10423127
21Screw
22Spring, Clip Knob
23MAY W10323734
