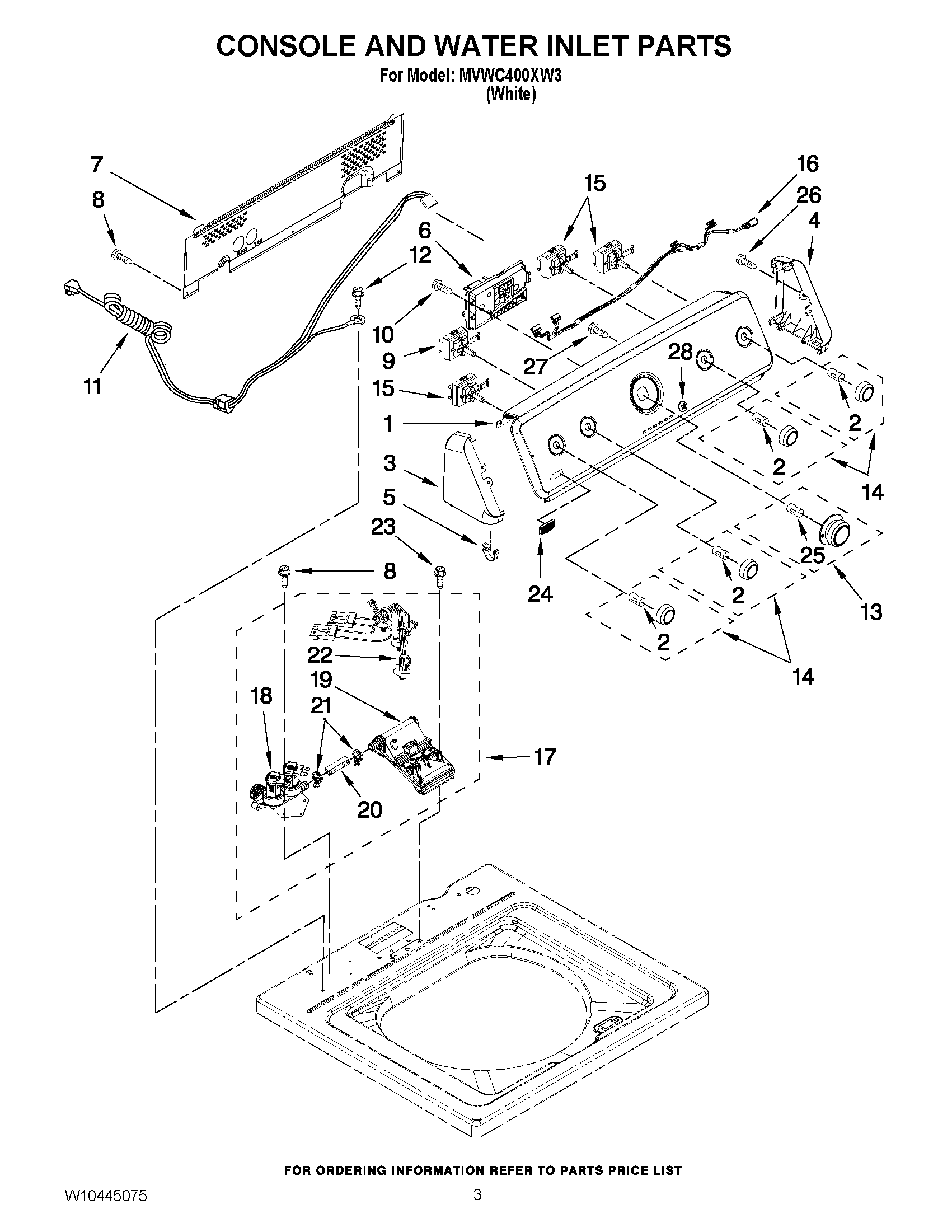

MVWC400XW3 02 – CONSOLE AND WATER INLET PARTS

MVWC400XW3 02 – CONSOLE AND WATER INLET PARTS

Written by

in

MVWC400XW3 02 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1MAY W10251338
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10422816
7MAY W10420985
8MAY 1157158
9SWITCH, ROTARY ENCODER
10SCREW,8-18 X 3/8
11MAY W10276649
12Screw, 10-32 x 5/8
13ASSEMBLY, KNOB & DIAL (GREY)
14ASSEMBLY, CONTROL KNOB (GREY)
15MAY W10285511
16MAY W10291177
17MAY W10357184
18MAY W10356257
19MAY W10334611
20MAY W10238347
21MAY W10117298
22MAY W10344775
23Screw
24MAY W10323734
25Spring, Clip Knob
26MAY 359625
27SCREW
28MAY W10251309
