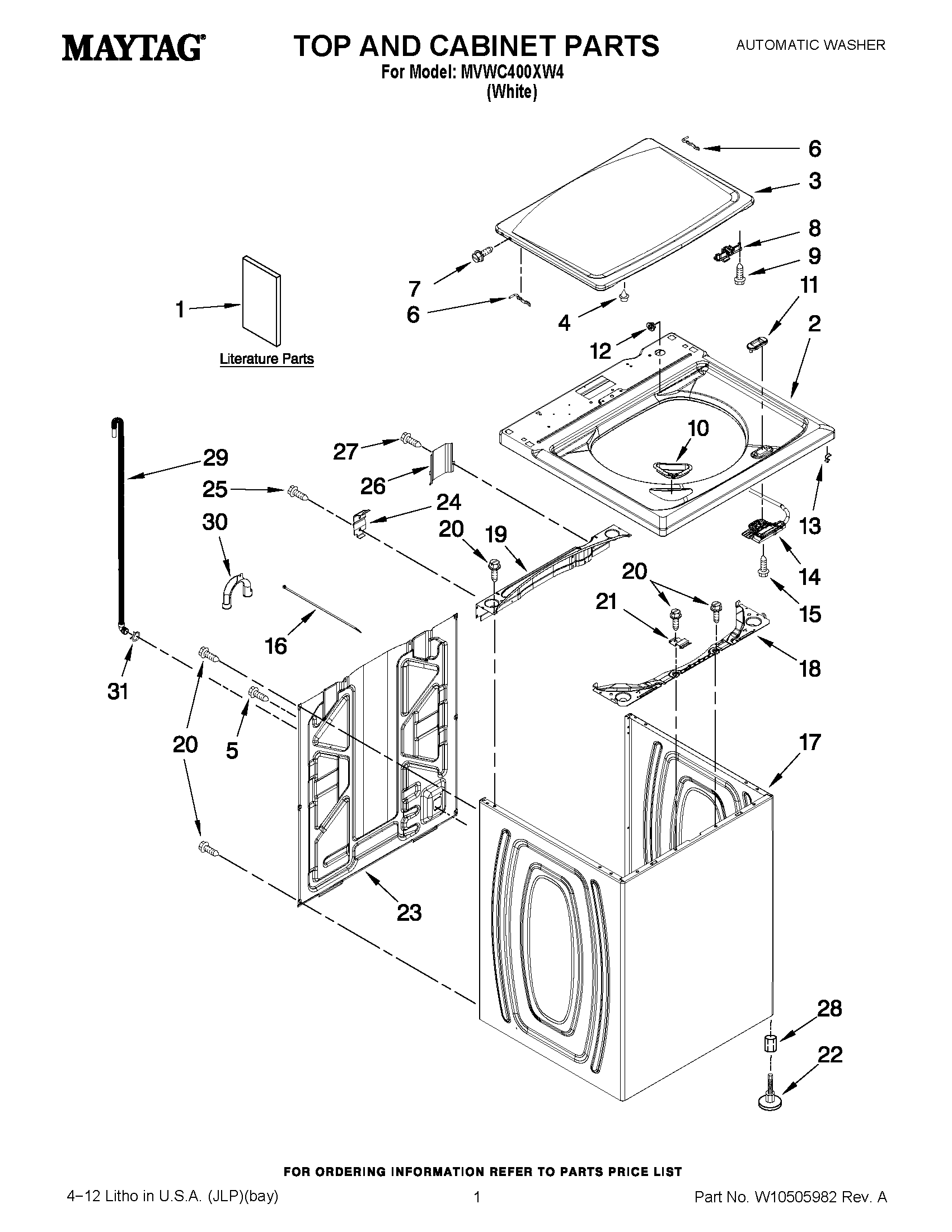

MVWC400XW4 01 – TOP AND CABINET PARTS

MVWC400XW4 01 – TOP AND CABINET PARTS

Written by

in

MVWC400XW4 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10062951
1MAY W10240509
1MAY W10468340
1MAY W10338602
1MAY W10420382
2TOP
3LID (INCLUDES ITEM 4)
4MAY 9724509
5SCREW
6HINGE, LID
7Screw And Washer
8MAY W10240513
9SCREW
10MAY W10192089
11MAY W10392041
12Hinge, Bearing (2)
13Clip, Wire (4)
14MAY W10238287
15Screw
16TIE, CABLE
17CABINET & FOOT ASSEMBLY (WHITE)
18MAY W10215098
19BRACE, CABINET TOP – REAR
20MAY 1157158
21MAY W10248088
22MAY W10397767
23PANEL, REAR
24MAY W10215102
25SCREW
26MAY W10215139
27Screw, 10-32 x 5/8
28Nut, 3/8-16
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY 356138
