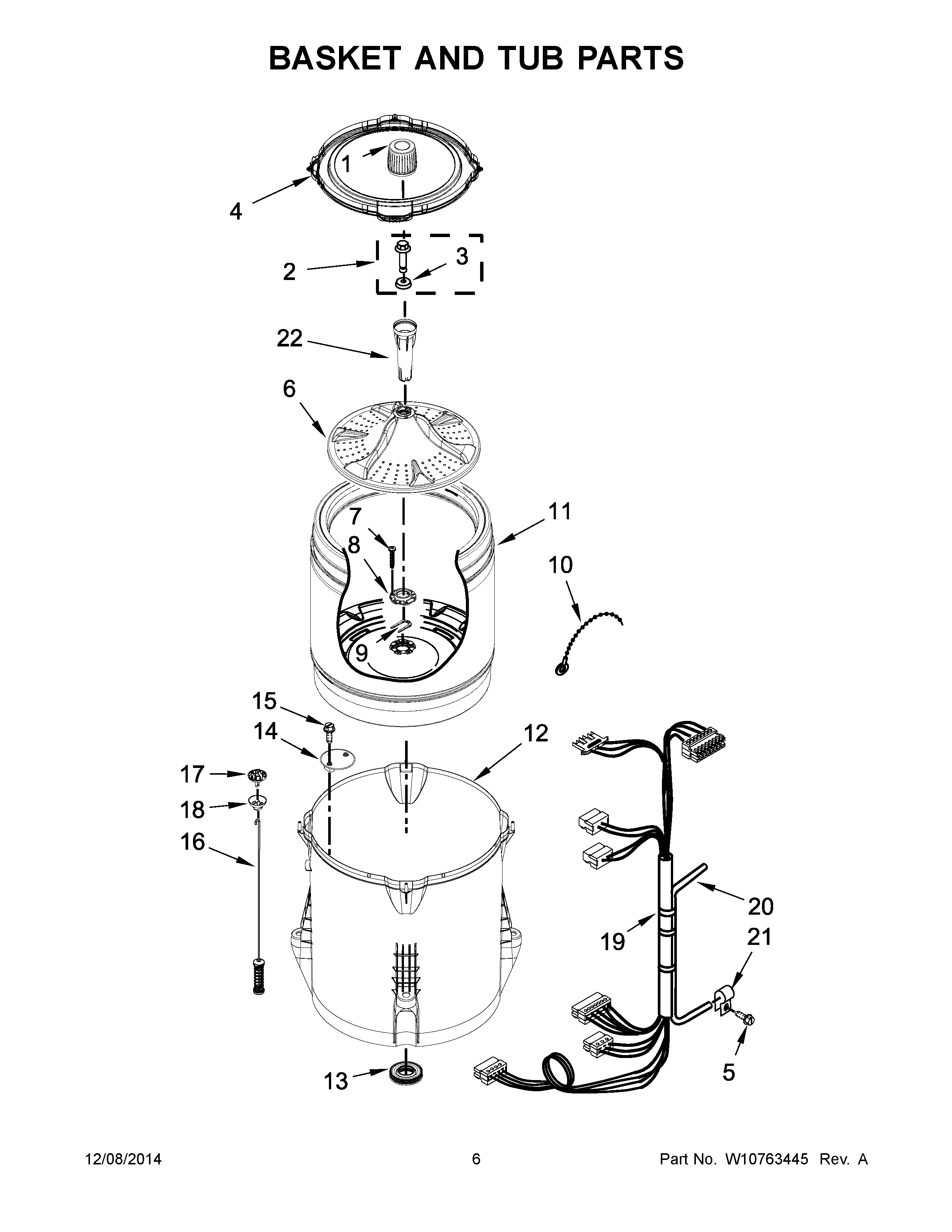

MVWC415EW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10680195
2	SCREW & WASHER
3	MAY 3949550
4	MAY W10556325
5	SCREW
6	IMPELLER (WASHPLATE)
7	SCREW
8	HUB – DRIVEN, BASKET
9	RETAINER, DRIVE BLOCK
10	MAY W10298887
11	MAY W10521298
12	TUB
13	MAY W10006371
14	MAY W10215093
15	Screw
16	MAY W10555290
17	BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
18	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
19	MAY W10610081
20	HOSE, PRESSURE SWITCH
21	CLAMP, CABLE
22	BARREL, AGITATOR
