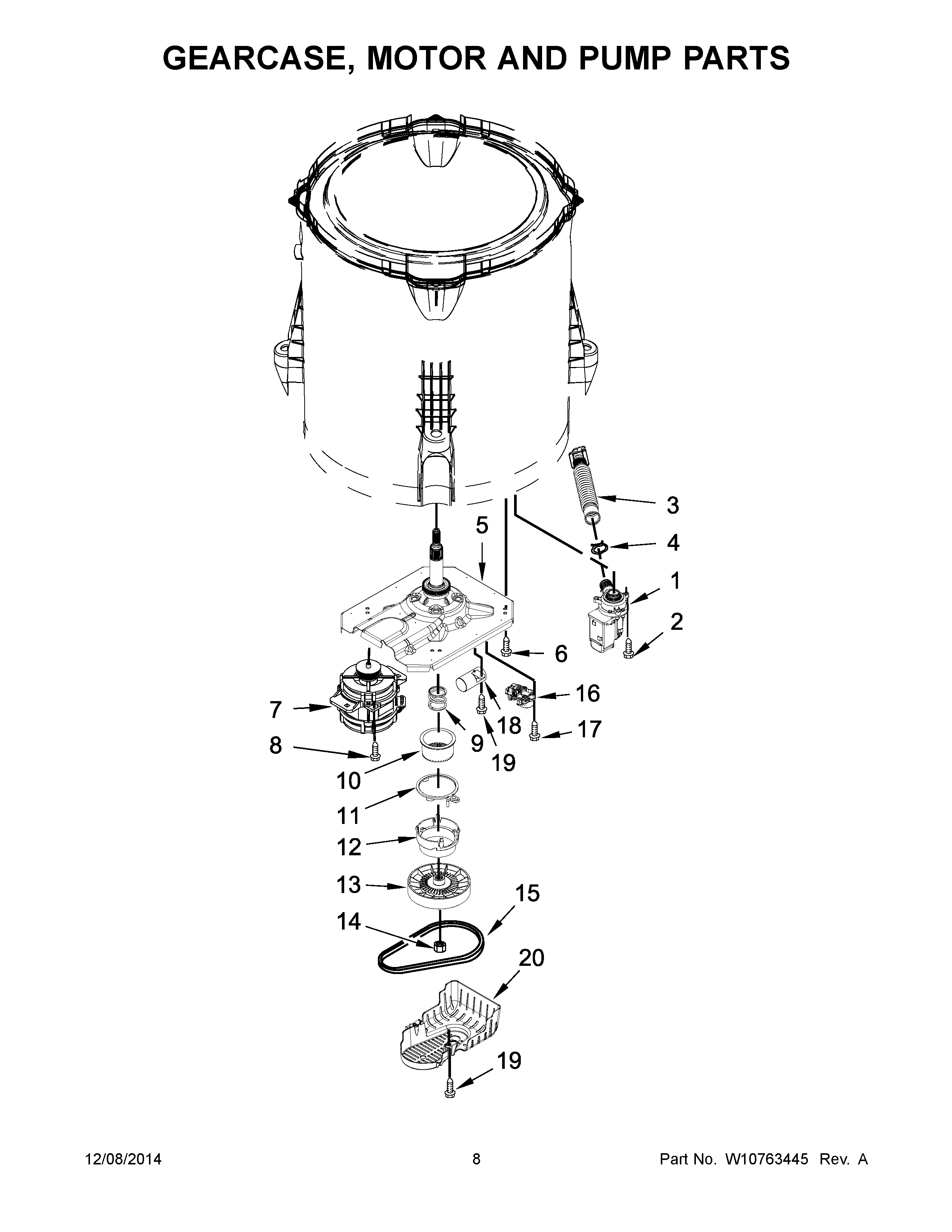

MVWC415EW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

Products

Position	Product
1	MAY W10614033
2	SCREW
3	MAY W10215091
4	MAY 8317496
5	MAY W10469846
6	SCREW
7	MAY W10416664
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH (INCLUDES ITEMS 9, 11, 12 AND 13)
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10239973
14	NUT
15	MAY W10006384
16	MAY W10597177
17	SCREW
18	MAY W10625046
19	SCREW
20	MAY W10550173
