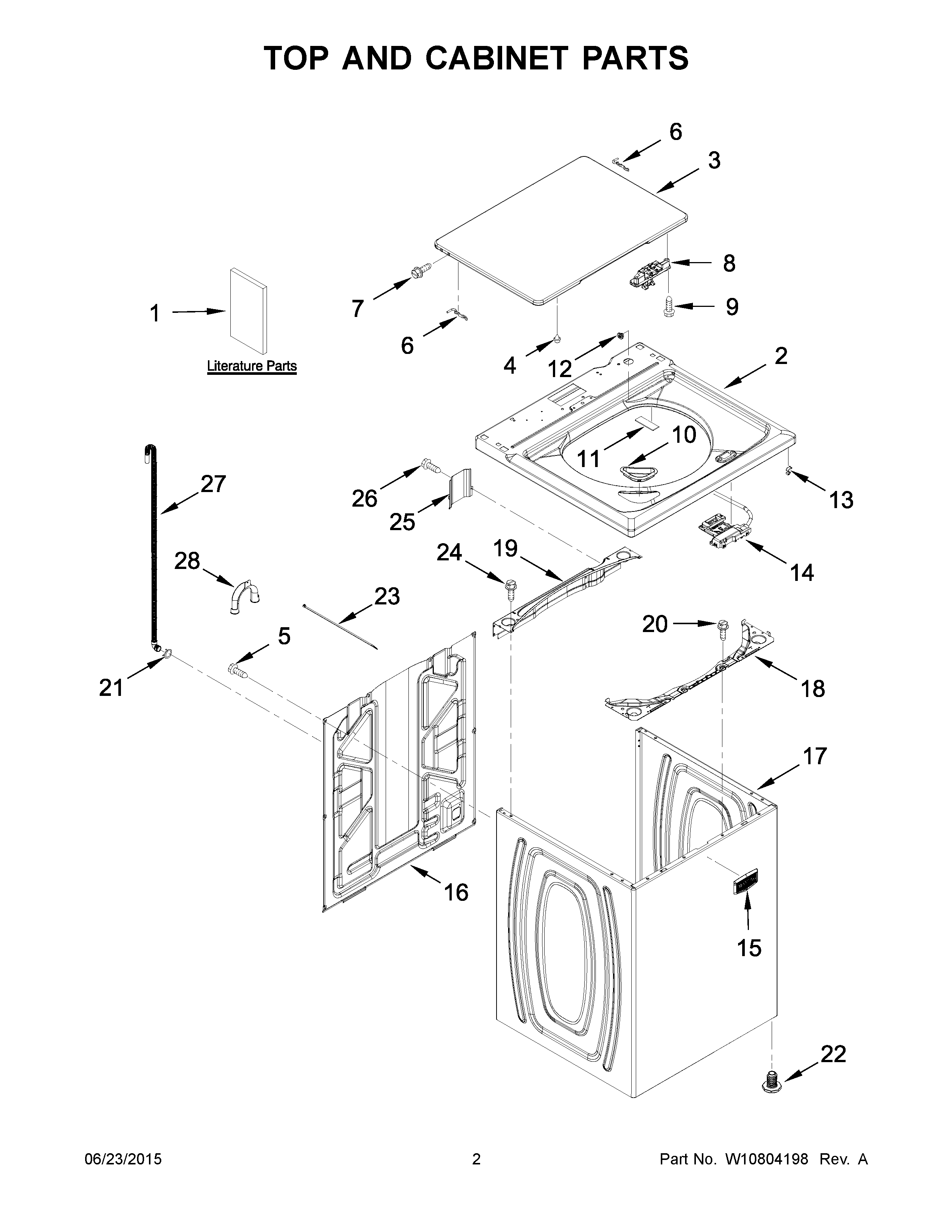

MVWC415EW1 02 – TOP AND CABINET PARTS

MVWC415EW1 02 – TOP AND CABINET PARTS

Written by

in

MVWC415EW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1	TECH SHEET
1C	MAY W10063028
1B	MAY W10740630
1A	MAY W10240509
2	TOP (WHITE)
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID
6A	HINGE, LID (RIGHT HAND)
7	Screw And Washer
8	MAY W10714899
9	SCREW
10	MAY W10192089
11	MAY W10684258
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W10682535
15	BADGE
16	PANEL, REAR
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY 356138
22	MAY W10556332
23	TIE, CABLE
24	SCREW
25	MAY W10676061
26	Screw, 10-32 x 5/8
27	HOSE, OUTER DRAIN ASSEMBLY
28	MAY W10280024
