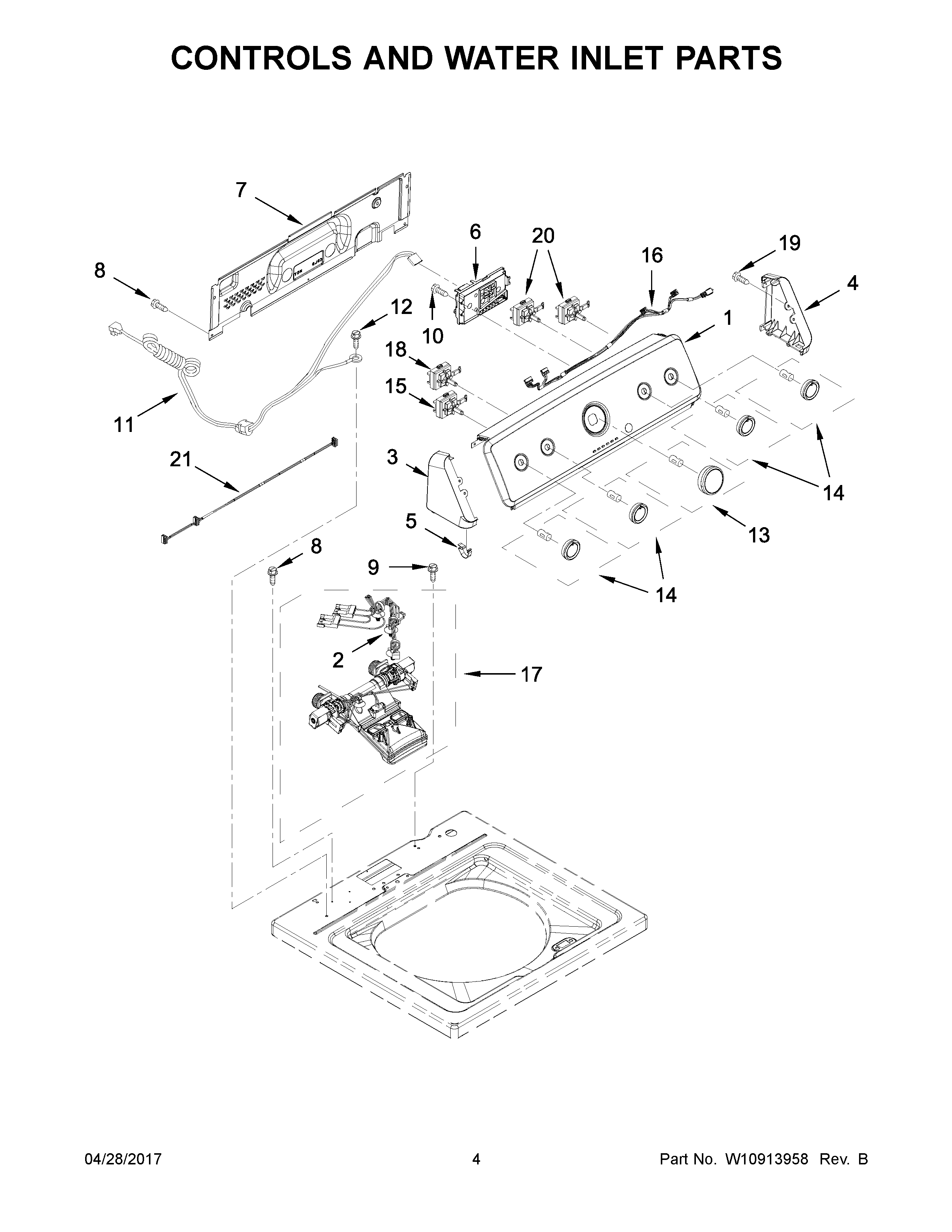

MVWC415EW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2HARNESS, VALVE
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7MAY W10461159
8MAY 1157158
9MAY W10213953
10SCREW,8-18 X 3/8
11CORD, POWER
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15SWITCH, ROTARY ENCODER
16HARNESS, UPPER
17INLET ASSEMBLY, WATER
18MAY W10285518
19MAY 359625
20MAY W10285511
21HARNESS, JUMPER
