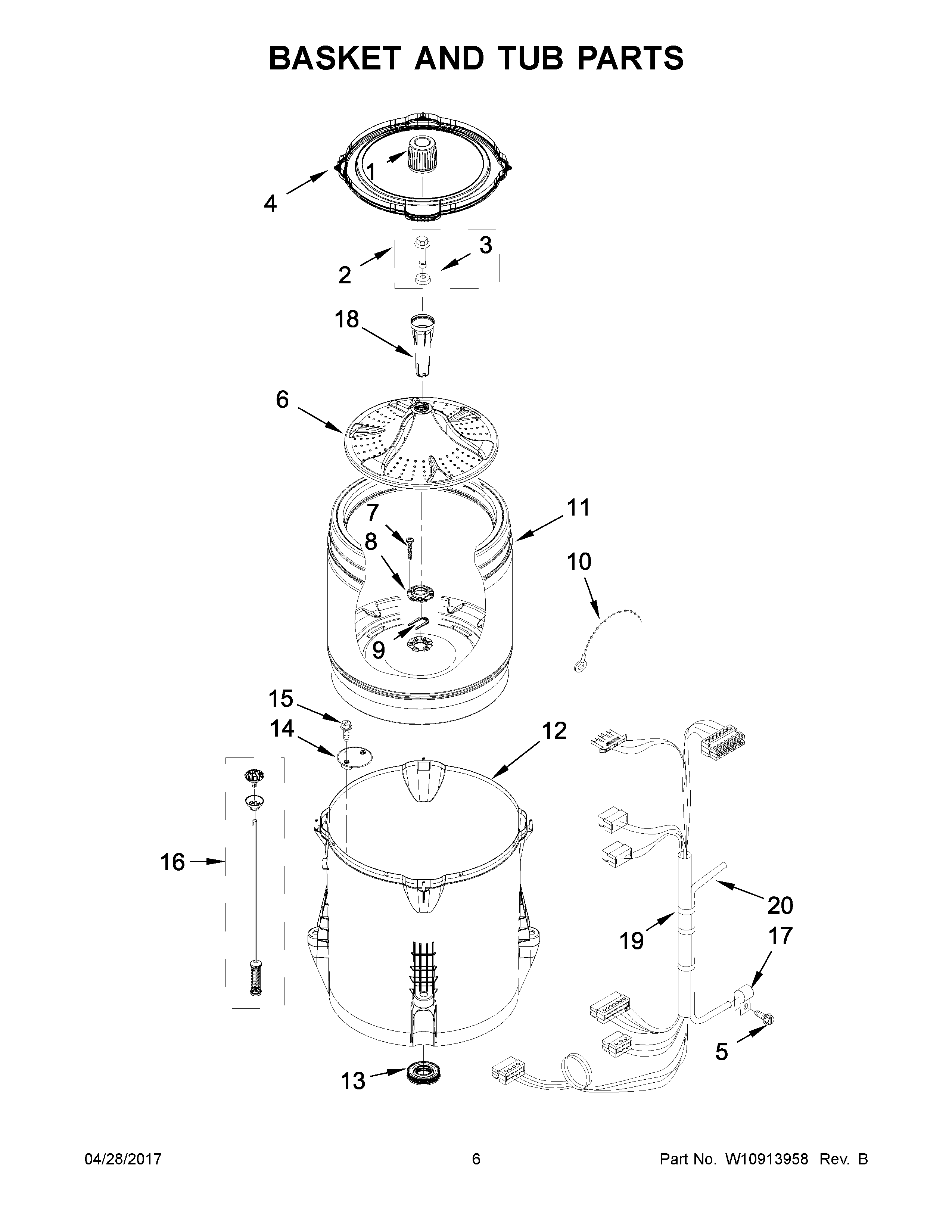

MVWC415EW2 04 – BASKET AND TUB PARTS

MVWC415EW2 04 – BASKET AND TUB PARTS

Written by

in

MVWC415EW2 04 – BASKET AND TUB PARTS

Products

Position	Product
1	DISPENSER, FABRIC SOFTENER
2	SCREW & WASHER
3	MAY 3949550
4	MAY W10556325
5	SCREW
6	IMPELLER (WASHPLATE)
7	SCREW
8	HUB – DRIVEN, BASKET
9	RETAINER, DRIVE BLOCK
10	MAY W10339680
11	MAY W10521298
12	TUB
13	MAY W10006371
14	MAY W10215093
15	Screw
16	MAY W10821954
17	CLAMP, CABLE
18	BARREL, AGITATOR
19	MAY W10899775
20	HOSE, PRESSURE SWITCH
