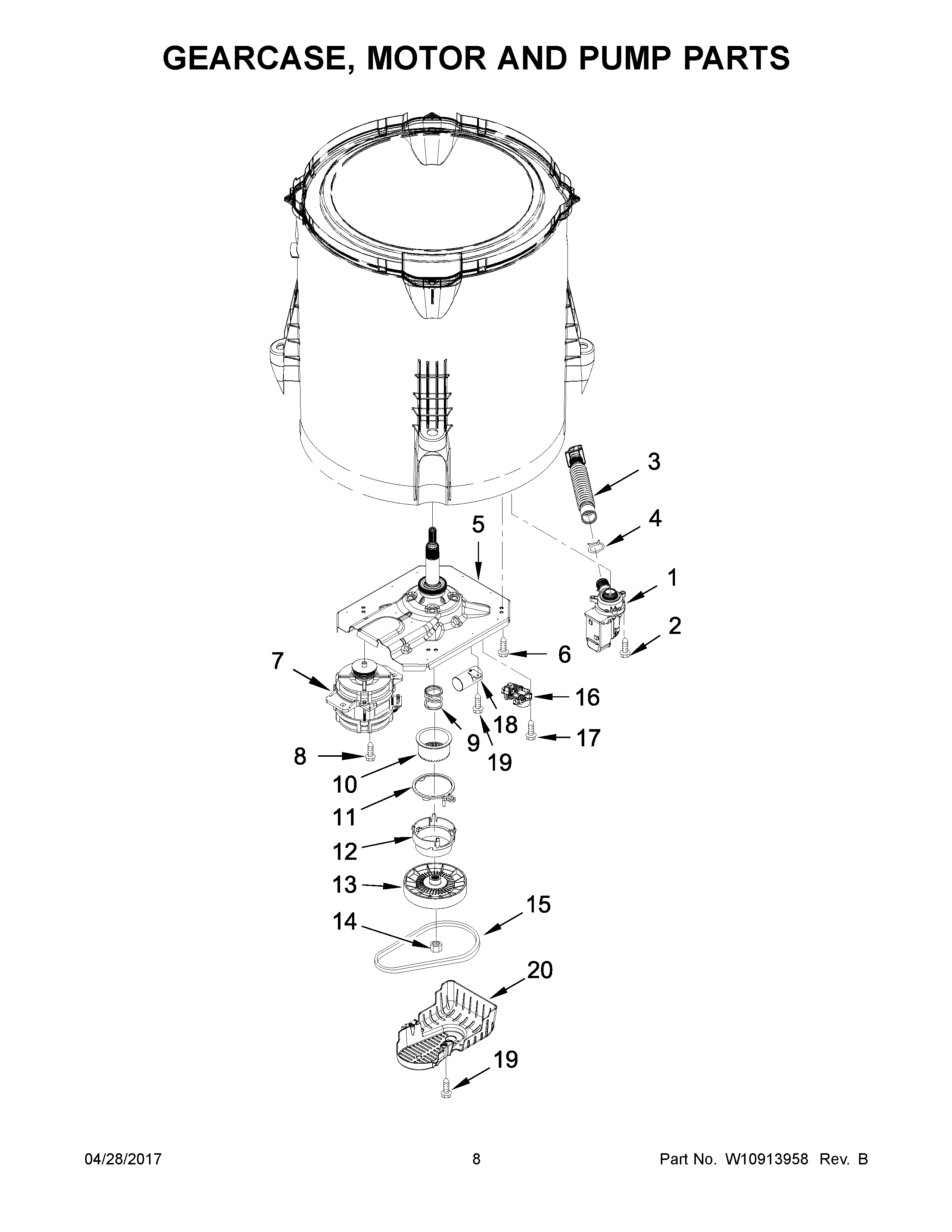

MVWC415EW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

Products

Position	Product
1	MAY W10775446
2	SCREW
3	MAY W10763078
4	MAY 8317496
5	GEARCASE ASSEMBLY
6	SCREW
7	MOTOR, DRIVE
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH (INCLUDES ITEMS 9, 11, 12 AND 13)
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10239973
14	NUT
15	MAY W10006384
16	ACTUATOR-SHIFT
17	SCREW
18	MAY W10625046
19	SCREW
20	MAY W10550173
