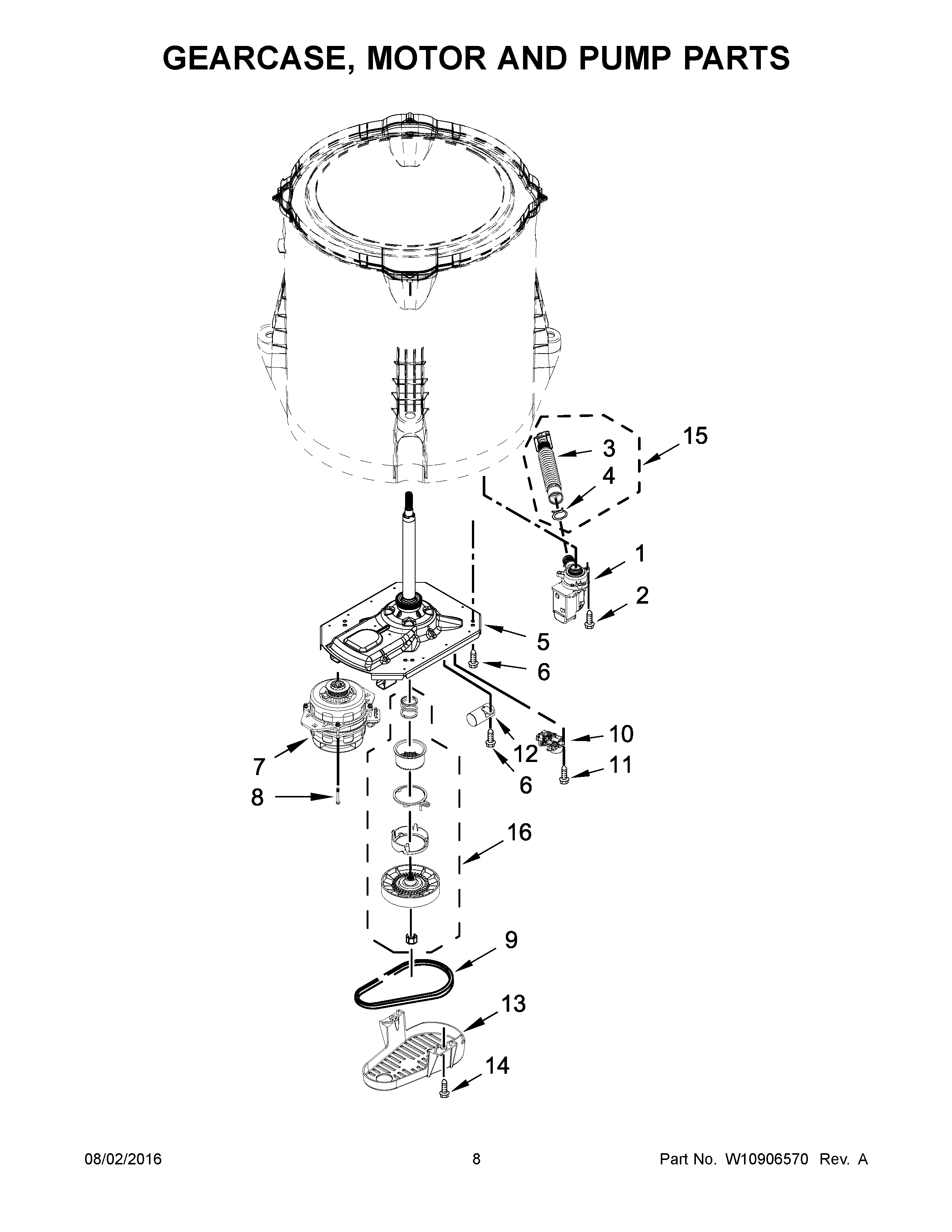

MVWC416FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

MVWC416FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC416FW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10775446
2	SCREW
3	MAY W10763078
4	MAY 8317496
5	GEARCASE ASSEMBLY
6	SCREW
7	MOTOR, DRIVE
8	BOLT, COUNTERWEIGHT
9	MAY W10006384
10	ACTUATOR-SHIFT
11	SCREW
12	MAY W10625046
13	MAY W10550173
14	SCREW
15	HOSE, INNER DRAIN ASSEMBLY
16	MAY W10721967
