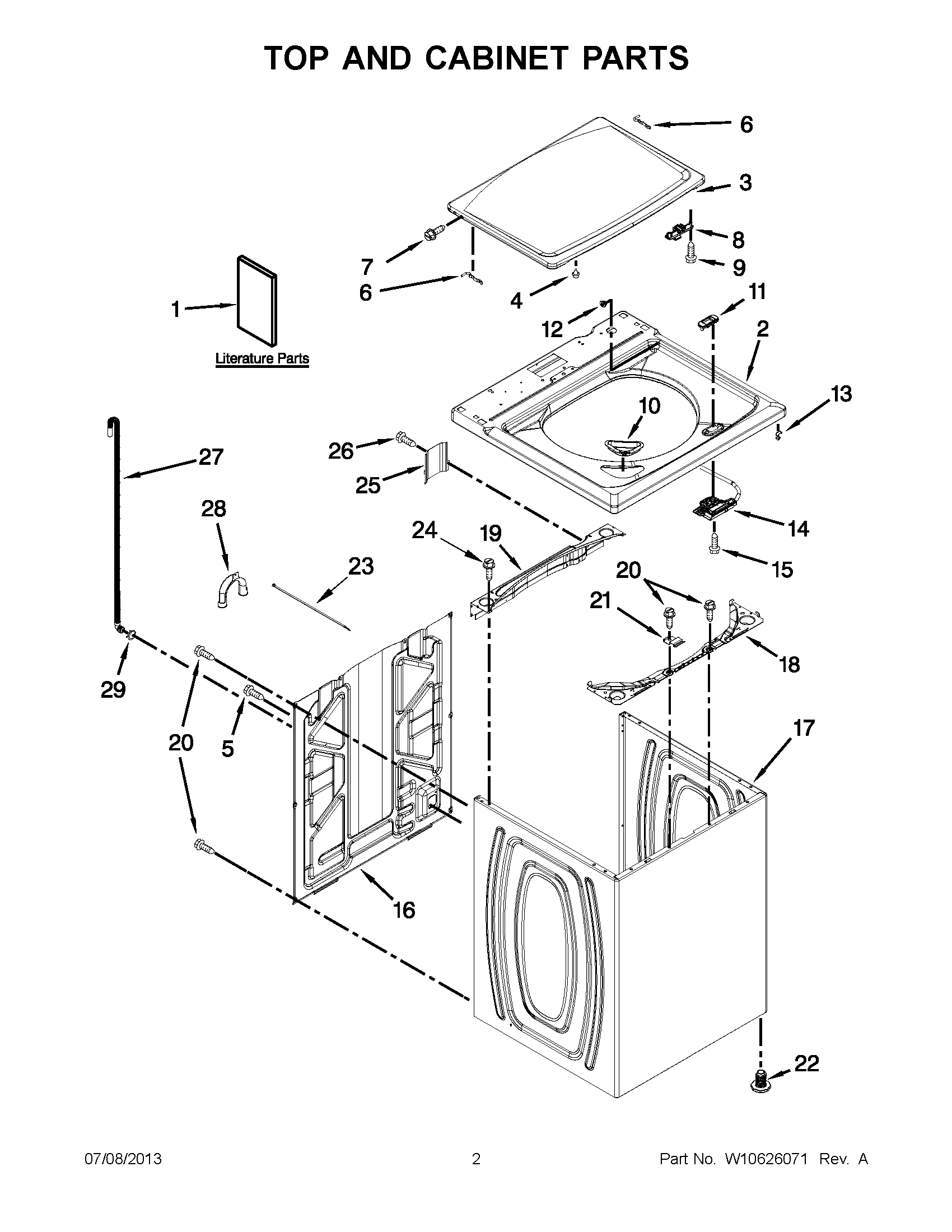

MVWC425BW0 01 – TOP AND CABINET PARTS

MVWC425BW0 01 – TOP AND CABINET PARTS

Written by

in

MVWC425BW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10560153
1MAY W10062996
1MAY W10468340
1MAY W10240509
2TOP
3LID AND BUMPER ASSEMBLY (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID
7Screw And Washer
8MAY W10240513
9SCREW
10MAY W10192089
11MAY W10392041
12Hinge, Bearing (2)
13Clip, Wire (4)
14MAY W10238287
15Screw
16PANEL, REAR
17MAY W10478060
18MAY W10215098
19BRACE, CABINET TOP – REAR
20MAY 1157158
21MAY W10248088
22MAY W10556332
23TIE, CABLE
24SCREW
25MAY W10215139
26Screw, 10-32 x 5/8
27HOSE, OUTER DRAIN ASSEMBLY
28MAY W10280024
29MAY 356138
