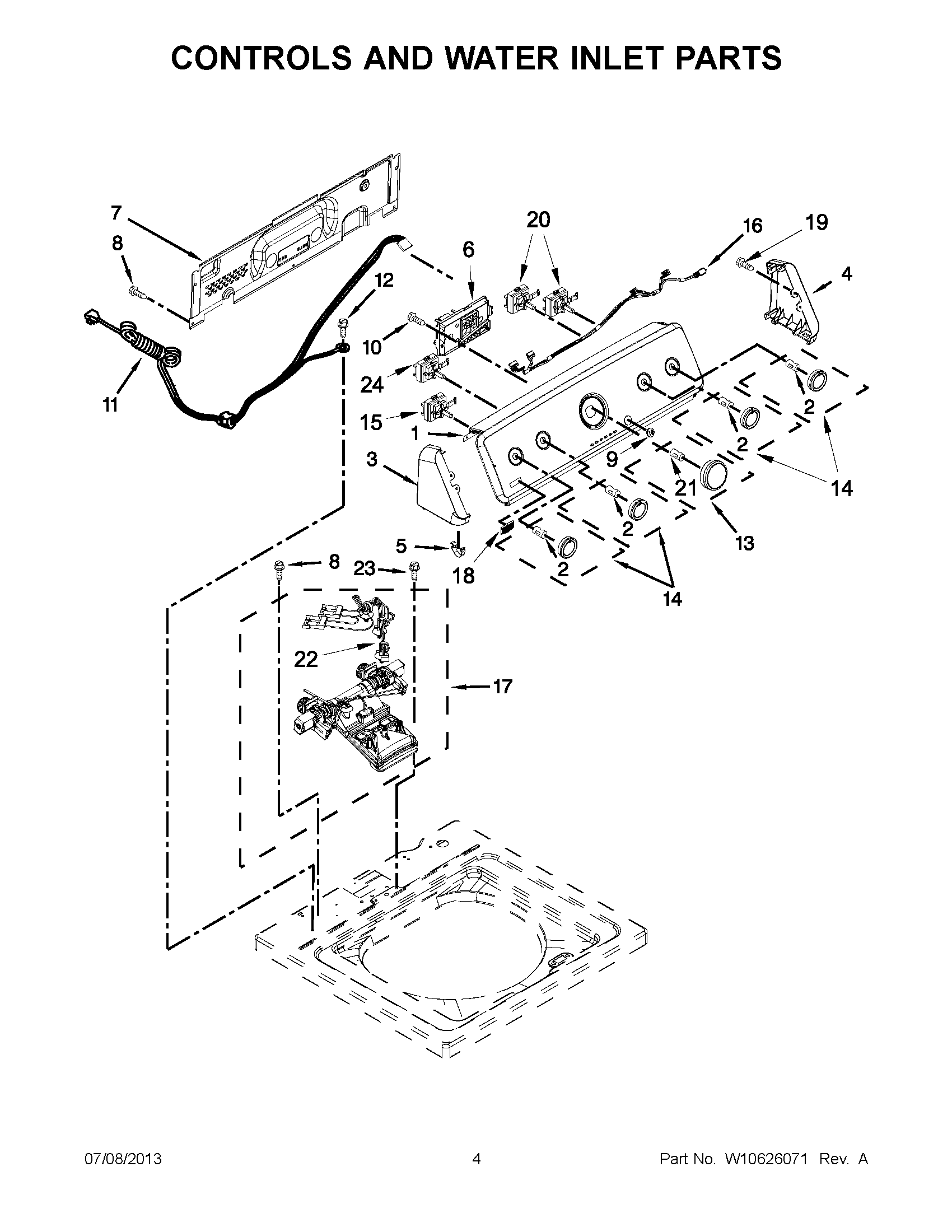

MVWC425BW0 02 – CONTROLS AND WATER INLET PARTS

MVWC425BW0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

MVWC425BW0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10468418
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10582043
7MAY W10461159
8MAY 1157158
9MAY W10584360
10SCREW,8-18 X 3/8
11MAY W10525194
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15SWITCH, ROTARY ENCODER
16MAY W10291177
17MAY W10501149
18MAY W10199708
19MAY 359625
20MAY W10285511
21Spring, Clip Knob
22MAY W10423127
23Screw
24MAY W10285518
