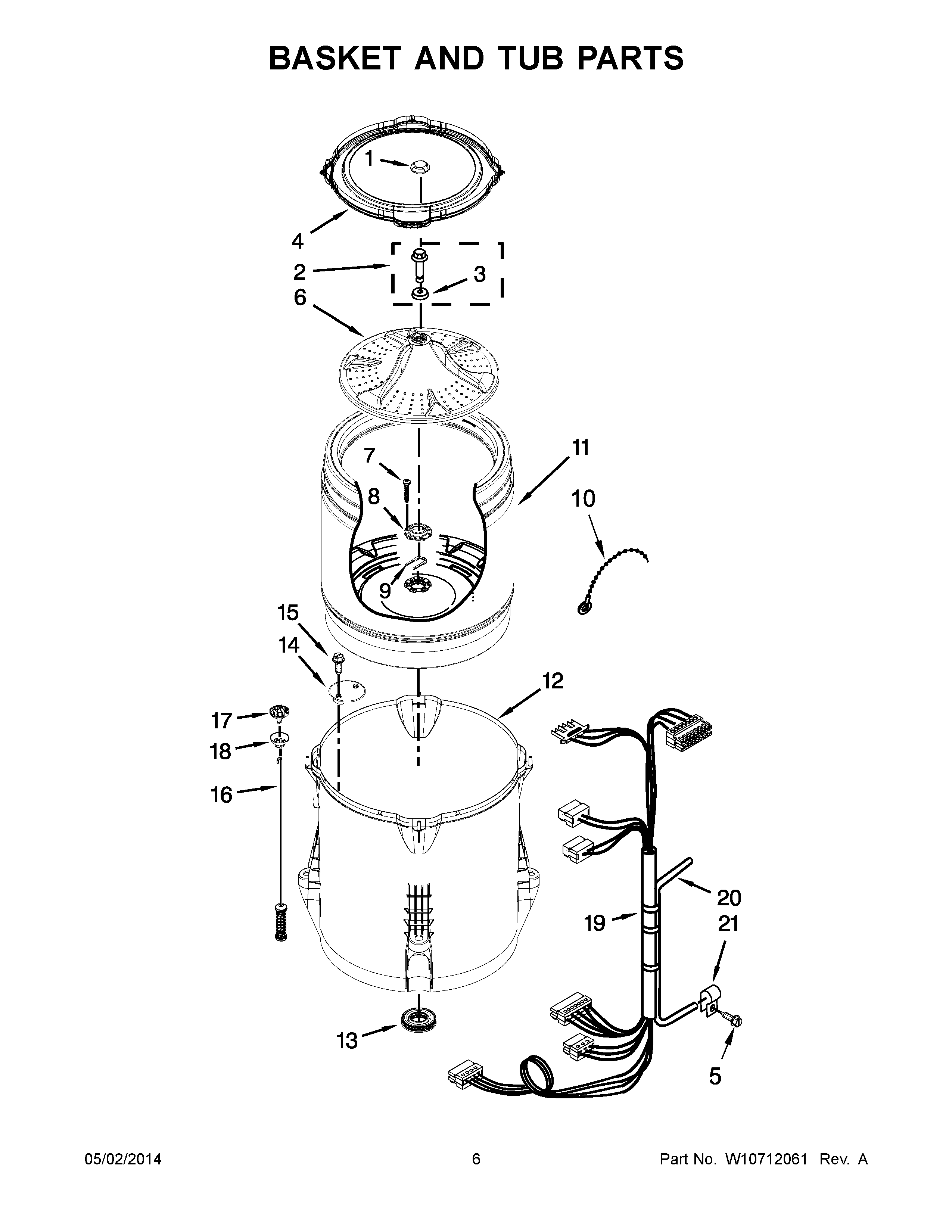

MVWC425BW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10305251
2SCREW & WASHER
3MAY 3949550
4MAY W10556325
5SCREW
6MAY W10553968
7SCREW
8HUB – DRIVEN, BASKET
9RETAINER, DRIVE BLOCK
10MAY W10298887
11MAY W10521298
12TUB
13MAY W10006371
14MAY W10215093
15Screw
16MAY W10555290
17BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
18BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
19MAY W10610081
20HOSE, PRESSURE SWITCH
21CLAMP, CABLE
