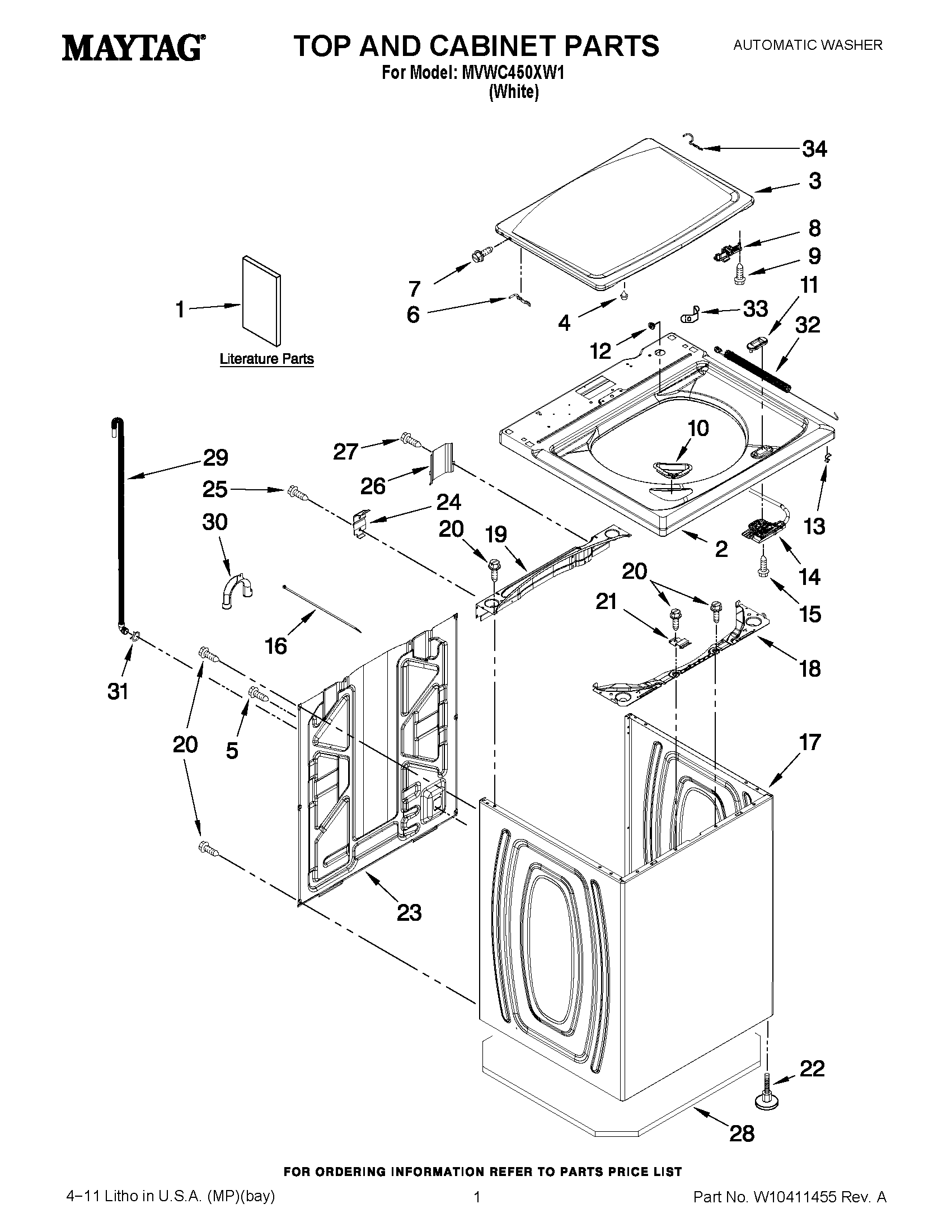

MVWC450XW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10280550
1	MAY W10280489
1	MAY W10240509
1	MAY W10280504
1	MAY W10338602
1	MAY W10062951
2	TOP (WHITE)
3	LID AND BUMPER ASSEMBLY (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID
7	Screw And Washer
8	MAY W10240513
9	SCREW
10	MAY W10192089
11	MAY W10392041
12	MAY 8319539
13	Clip, Wire (4)
14	MAY W10238287
15	Screw
16	TIE, CABLE
17	CABINET & FOOT ASSEMBLY (WHITE)
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY W10248088
22	MAY W10335586
23	PANEL, REAR
24	MAY W10215102
25	SCREW
26	MAY W10215139
27	Screw, 10-32 x 5/8
28	MAY W10361353
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
32	SPRING ASSEMBLY
33	Clip
34	HINGE, LID (RIGHT)
