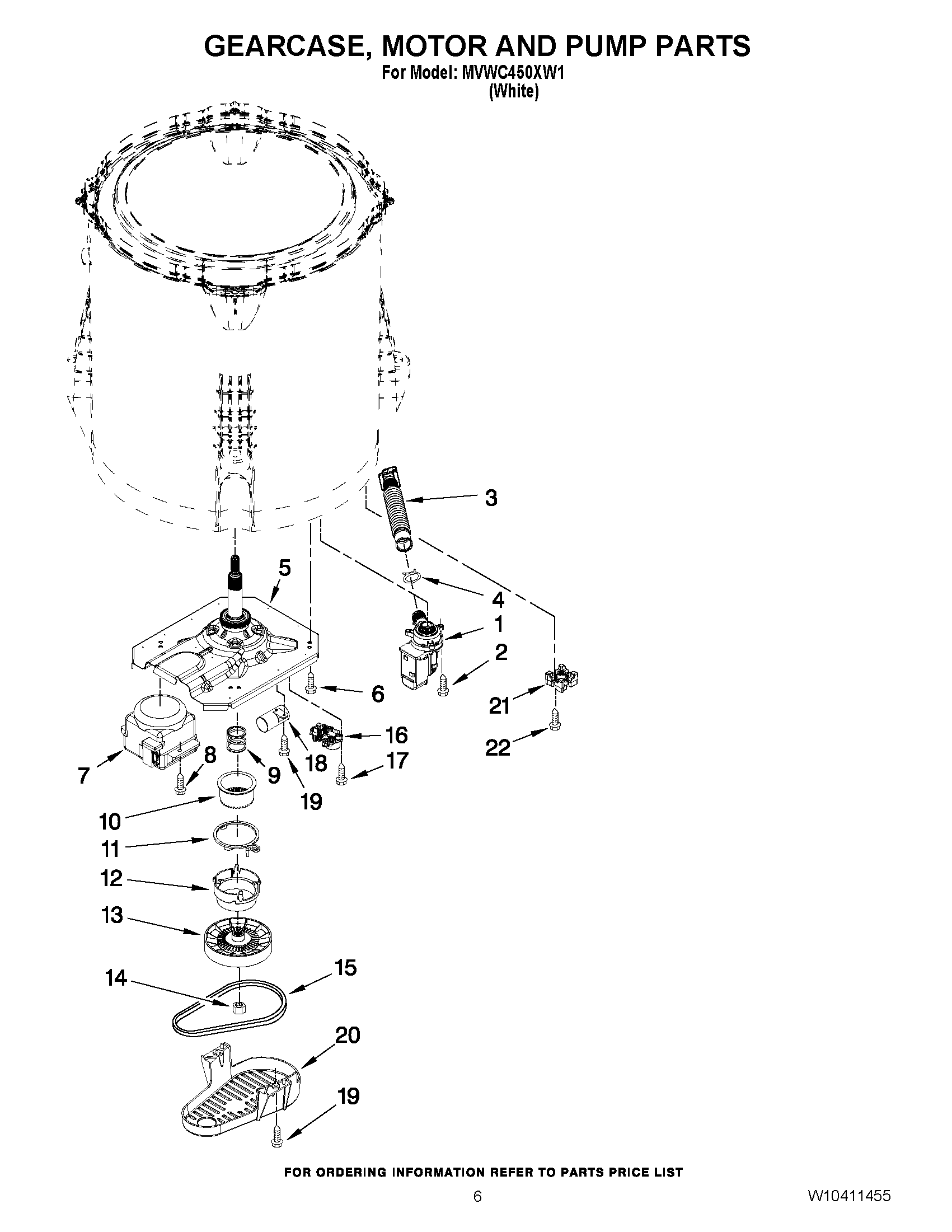

MVWC450XW1 04 – GEARCASE, MOTOR AND PUMP PARTS

MVWC450XW1 04 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC450XW1 04 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10276397
2	SCREW
3	MAY W10215091
4	MAY 8317496
5	MAY W10006401
6	SCREW
7	MAY W10249628
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10006356
14	MAY W10163336
15	MAY W10006384
16	MAY W10006355
17	SCREW
18	MAY W10278117
19	SCREW
20	MAY W10006383
21	MAY W10238318
22	SCREW
