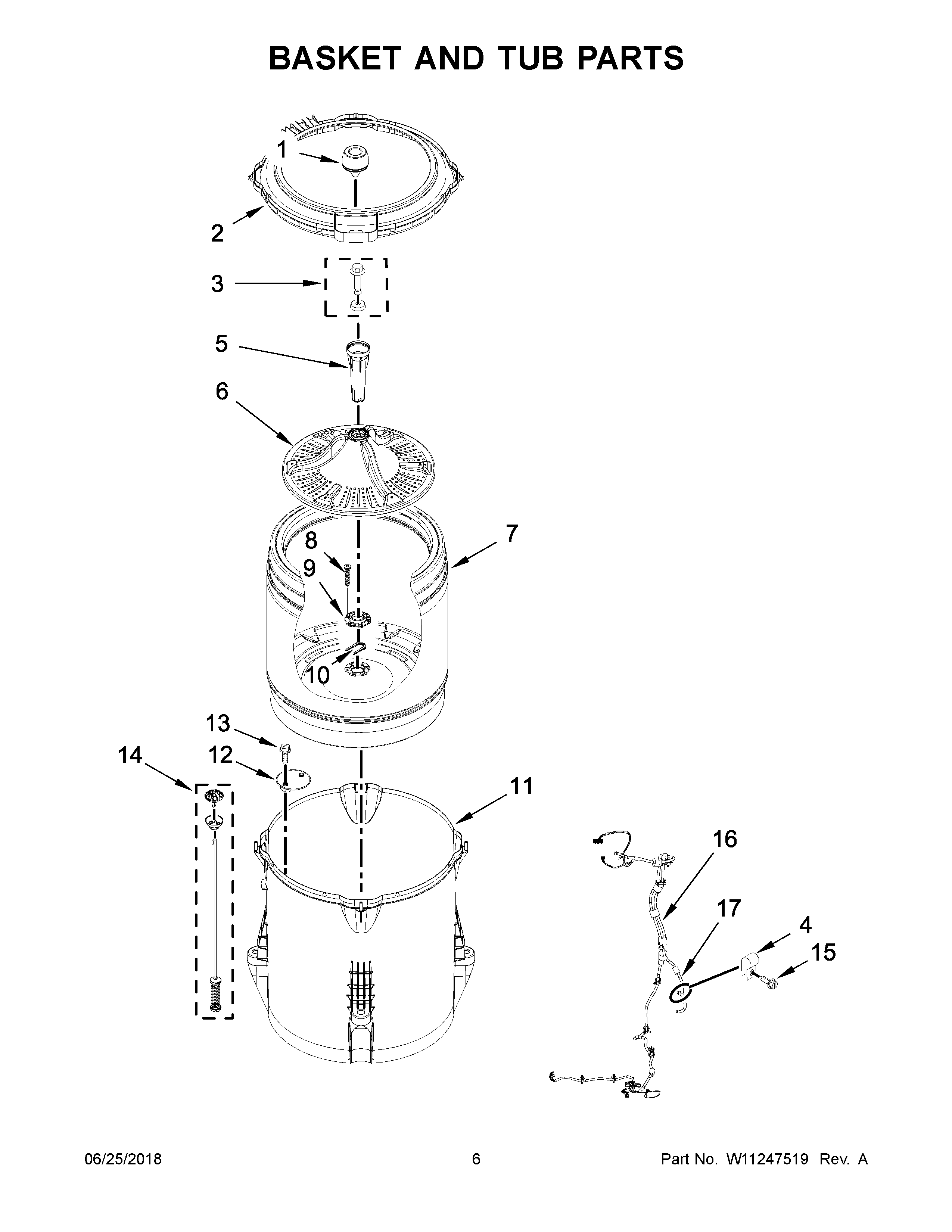

MVWC465HW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	DISPENSER, FABRIC SOFTENER
2	TUB RING
3	BOLT AND WASHER
4	CLAMP, CABLE
5	BARREL, AGITATOR
6	IMPELLER (WASHPLATE)
7	BASKET ASSEMBLY
8	SCREW
9	HUB – DRIVEN, BASKET
10	RETAINER, DRIVE BLOCK
11	TUB (INCLUDES TUB SEAL)
12	MAY W10215093
13	Screw
14	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND SUSPENSION BALLS)
15	SCREW
16	HARNESS, LOWER
17	HOSE, PRESSURE SWITCH
