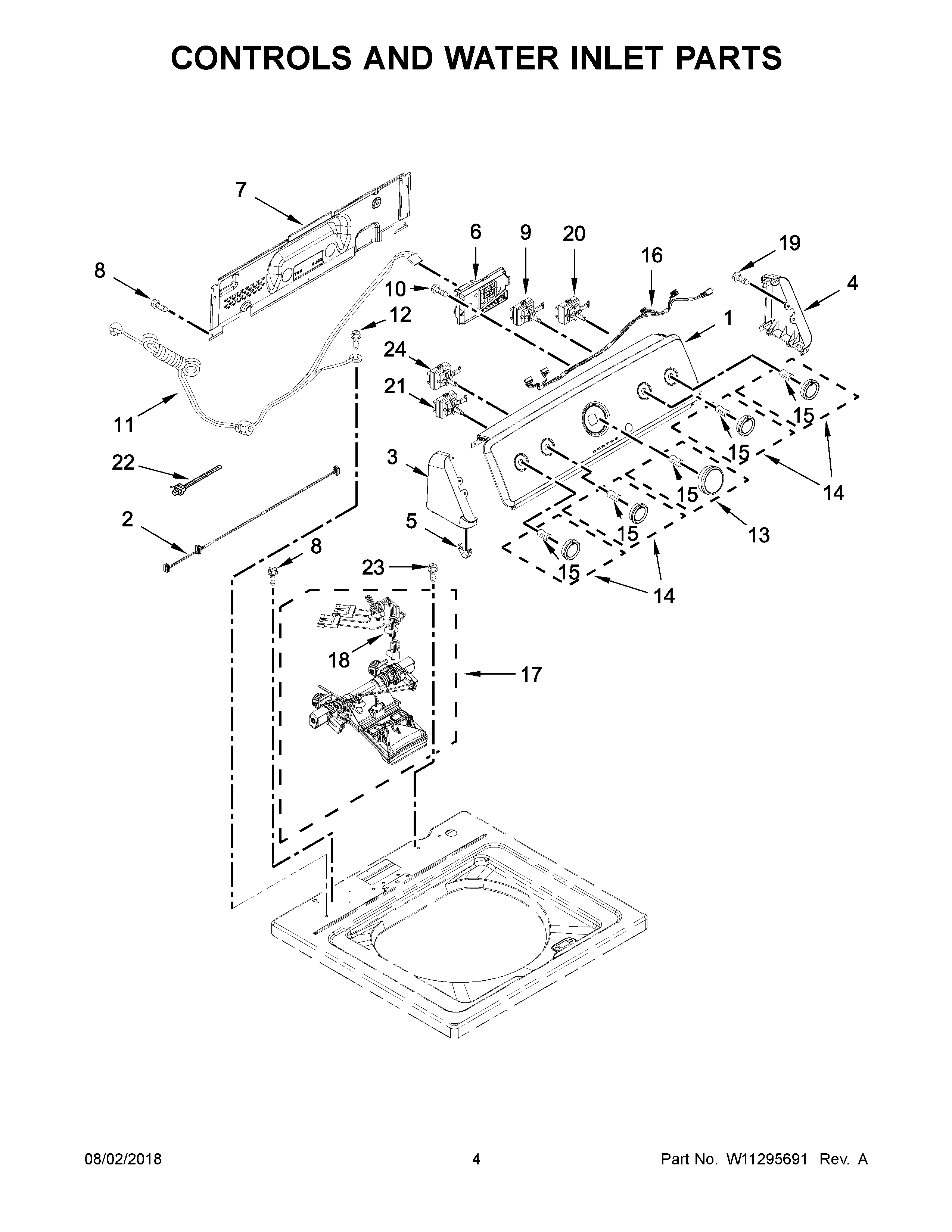

MVWC465HW2 03 – CONTROLS AND WATER INLET PARTS

MVWC465HW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

MVWC465HW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2HARNESS, JUMPER
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7MAY W10461159
8SCREW
9SWITCH, ROTARY ENCODER
10SCREW,8-18 X 3/8
11CORD, POWER
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15Spring, Clip Knob
16HARNESS, UPPER
17INLET ASSEMBLY, WATER
18HARNESS, VALVE
19MAY 359625
20MAY W10285511
21SWITCH, ROTARY ENCODER
22MAY W10339680
23MAY W10213953
24MAY W10285518
