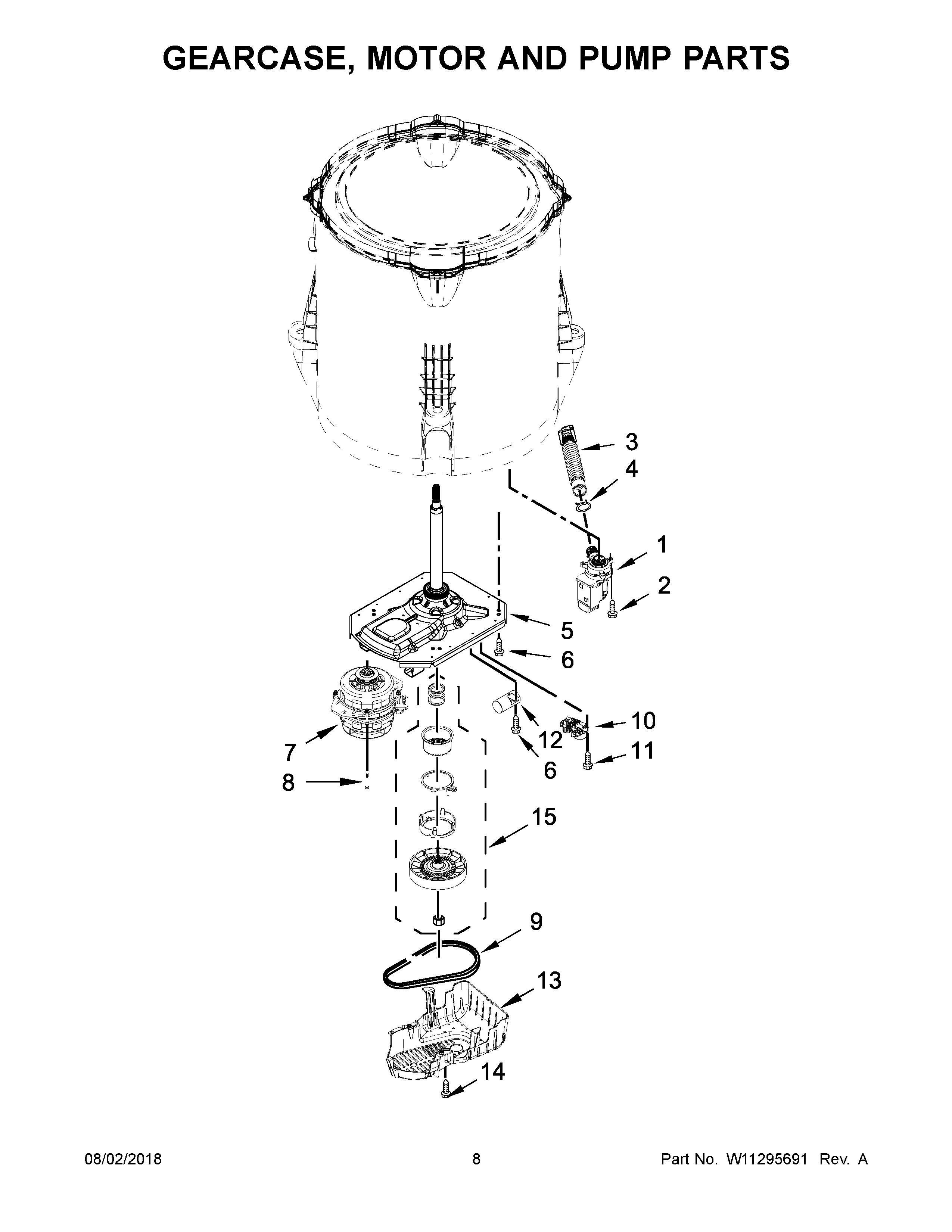

MVWC465HW2 05 – GEARCASE, MOTOR AND PUMP PARTS

MVWC465HW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC465HW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1MAY W10775446
2SCREW
3MAY W10763078
4MAY 8317496
5GEARCASE ASSEMBLY
6SCREW
7MOTOR, DRIVE
8BOLT, COUNTERWEIGHT
9BELT, DRIVE
10ACTUATOR-SHIFT
11SCREW
12CAPACITOR, MOTOR RUN
13SHIELD, PULLEY COVER
14SCREW
15MAY W10721967
