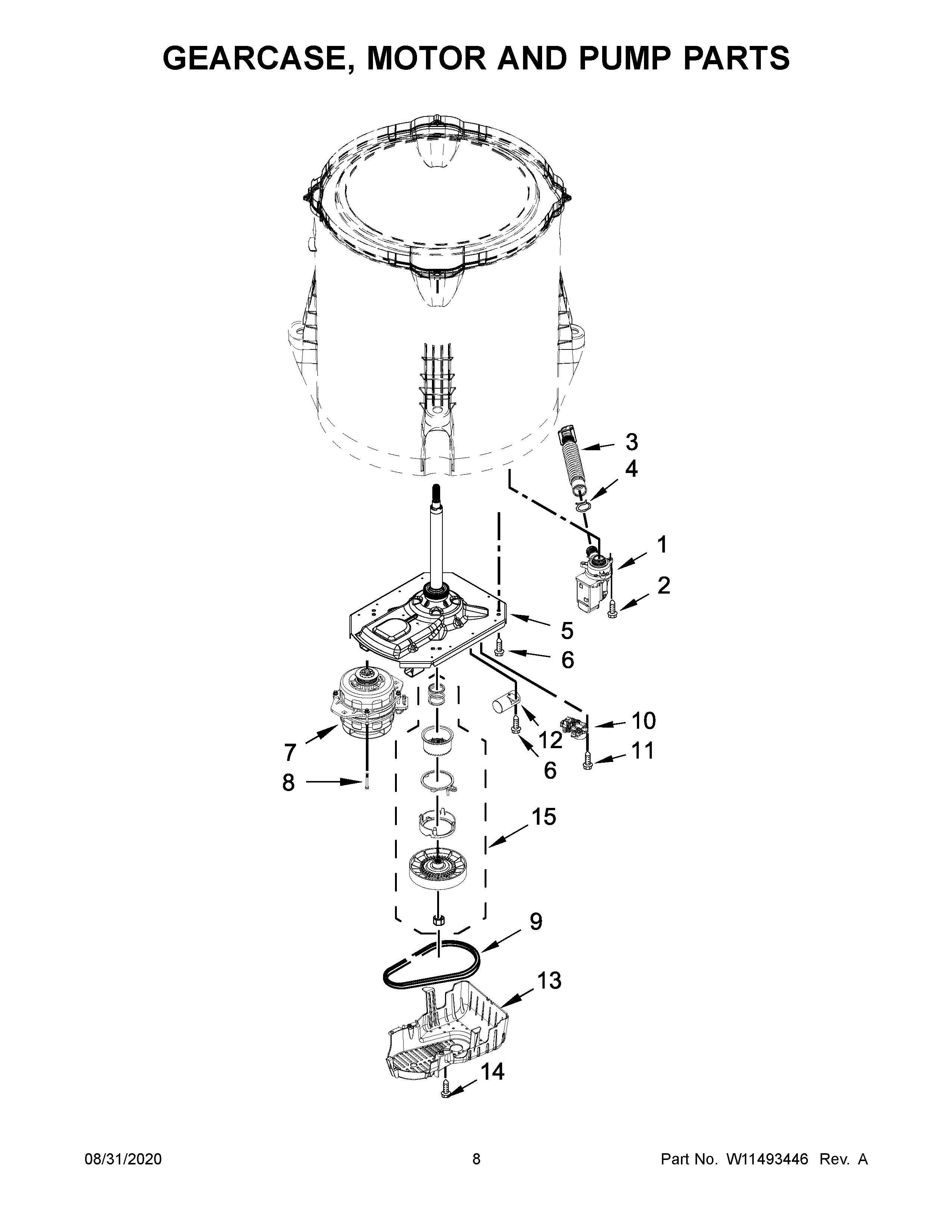

MVWC465HW3 05 – GEARCASE, MOTOR AND PUMP PARTS

MVWC465HW3 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC465HW3 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10775446
2	SCREW
3	MAY W10763078
4	MAY 8317496
5	GEARCASE ASSEMBLY
6	SCREW
7	MAY W11222394
8	BOLT, COUNTERWEIGHT
9	BELT, DRIVE
10	ACTUATOR-SHIFT
11	SCREW
12	MAY W10866238
13	SHIELD, PULLEY COVER
14	SCREW
15	MAY W10721967
