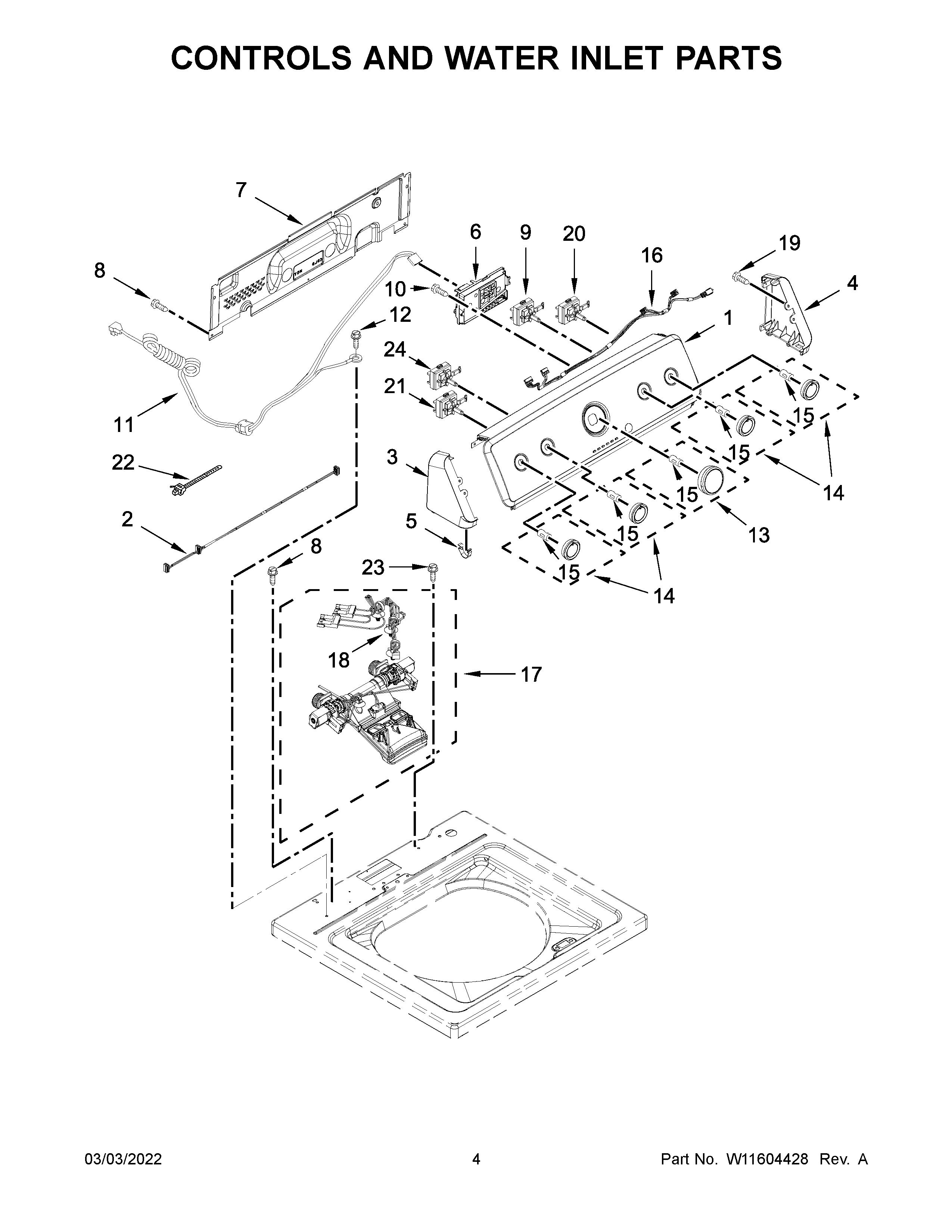

MVWC465HW4 03 – CONTROLS AND WATER INLET PARTS

MVWC465HW4 03 – CONTROLS AND WATER INLET PARTS

Written by

in

MVWC465HW4 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W11236321 Whirlpool Control Panel
2W10694669 Whirlpool Wire Harness
3WPW10193824 Whirlpool Endcap
4WPW10193821 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W11608058 Whirlpool Electronic Control Board + Core
6W11498797-includeCORE Whirlpool W11498797 Washer Electronic Control Board with Core
7WPW10461159 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13WPW10558463 Whirlpool Knob Assembly
14WPW10562155 Whirlpool Knob
15WP688805 Whirlpool Spring Clip
16W10694685 Whirlpool Wire Harness
16W10539078 Whirlpool Wire Harness
17VALVE-WATER INLET WASHER
18W10868094 Whirlpool Wire Harness
19W11693756 Whirlpool Screw Assembly
20WPW10285511 Whirlpool Cycle Switch
21WPW10285517 Whirlpool Cycle Switch
22W10339680 Whirlpool Wire Tie
23WPW10213953 Whirlpool Screw
24WPW10285518 Whirlpool Cycle Switch
