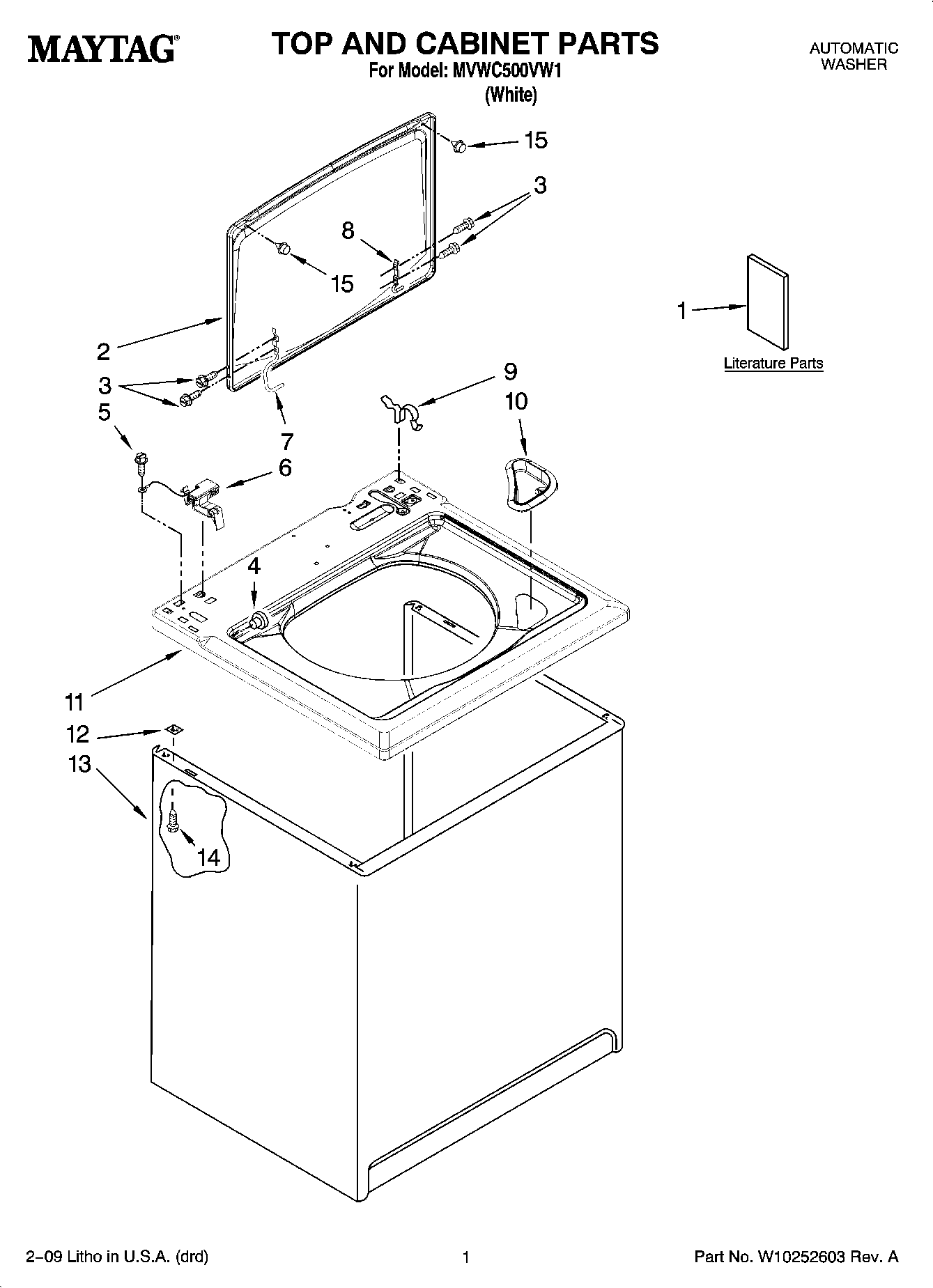

MVWC500VW1 01 – TOP AND CABINET PARTS

MVWC500VW1 01 – TOP AND CABINET PARTS

Written by

in

MVWC500VW1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10092809
1MAY W10092801
1MAY W10092800
1MAY W10092797
1MAY W10111392
1MAY W10092796
1MAY W10200662
1Installation Instructions (English)
2MAY W10093782
3SCREW, LID HINGE
4MAY 8319539
5SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
6MAY 8318084
7MAY W10225136
8HINGE, LID
9MAY 62780
10MAY W10192089
11MAY W10194868
12MAY 62750
13Cabinet
14SCREW
15MAY 9724509
