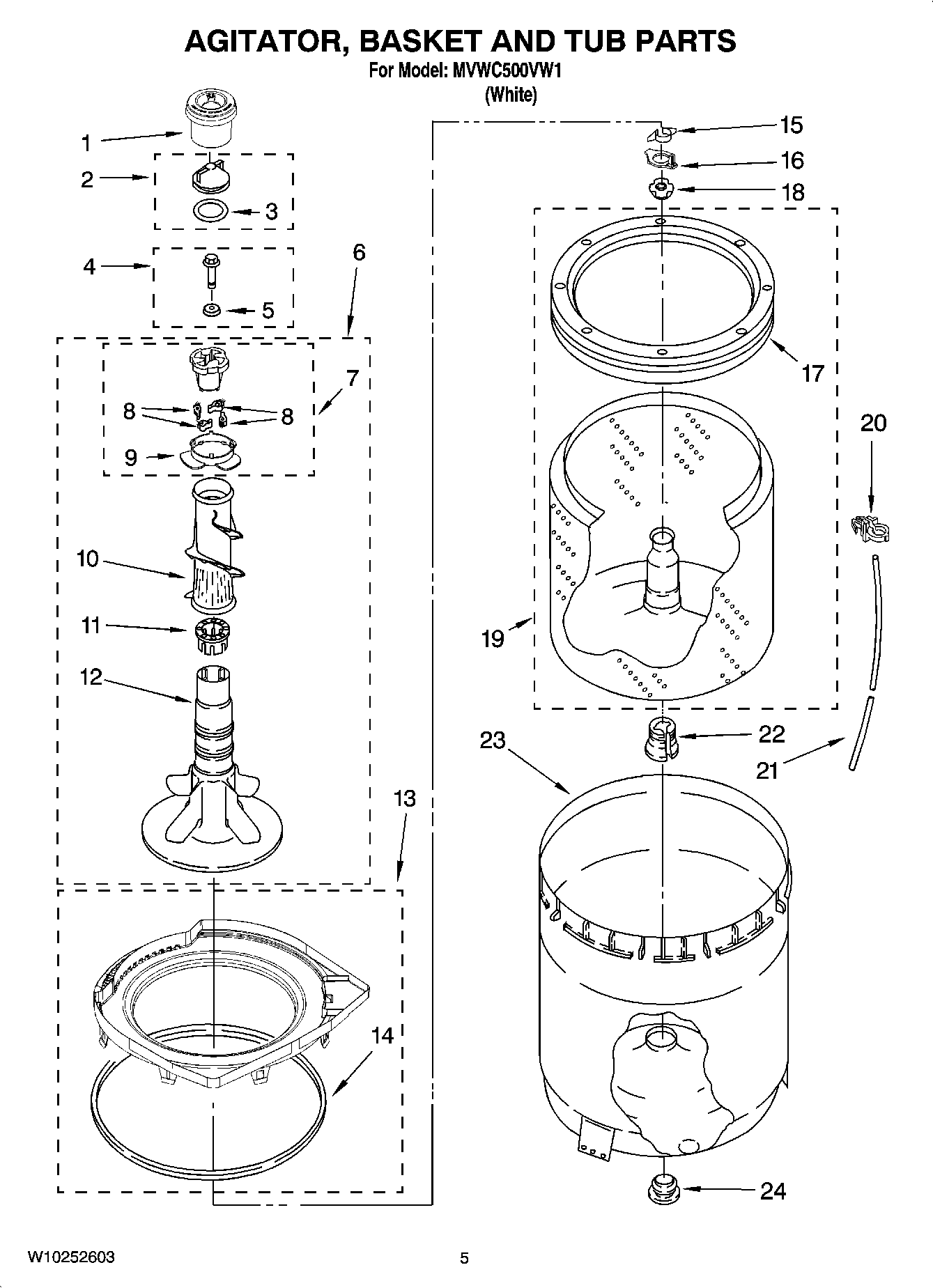

MVWC500VW1 03 – AGITATOR, BASKET AND TUB PARTS

MVWC500VW1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

MVWC500VW1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY 8575076
2MAY 3354733
3MAY W10072840
4Screw & Washer
5MAY 3949550
6MAY W10093672
7MAY 3363663
8Dog, Agitator (4)
9BEARING, CAM
10MAY 3349019
11SPACER, THRUST
12MAY W10110020
13MAY W10168523
14MAY 3359585
15MAY 3354845
16MAY 8543666
17MAY W10006326
18MAY W10116602
19BASKET
20Clip, Harness (1)
21MAY 3347780
22Block, Drive
23MAY 63849
24MAY 383727
