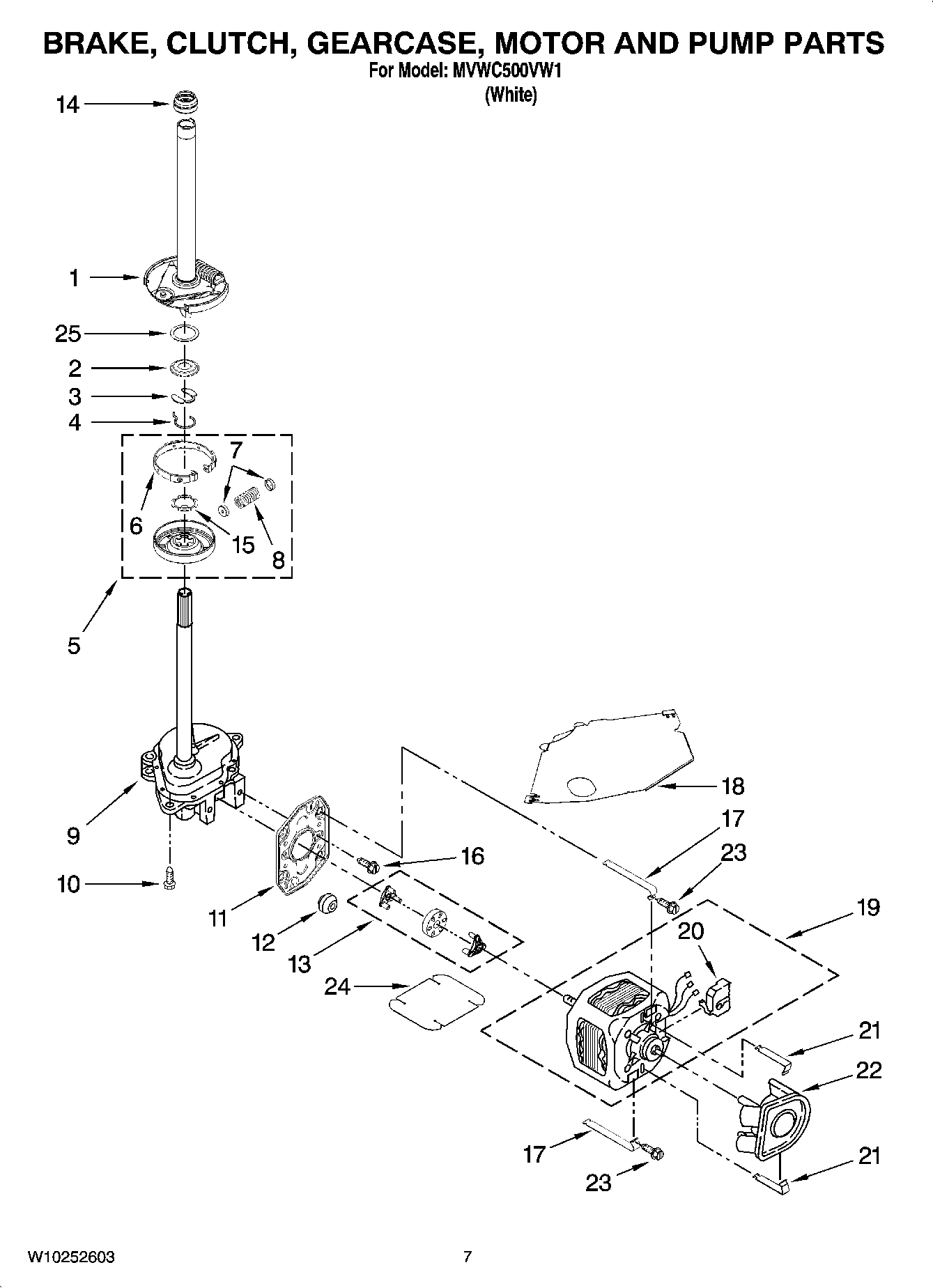

MVWC500VW1 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

MVWC500VW1 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Written by

in

MVWC500VW1 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1MAY 388952
2MAY 63292
3MAY 62697
4MAY 63283
5MAY 8299642
6Band & Lining Assembly
7MAY 62646
8MAY 8559387
9MAY W10140301
10Screw, 5/16-24 x 5/8
11MAY 62611
12MAY 62691
13MAY 3978849
14MAY 8577374
15MAY 3355454
16MAY 3400516
17MAY W10086010
18MAY 3362089
19MAY 8528157
20MAY 3952056
21Retainer, Pump
22MAY 3363394
23MAY 3387485
24MAY 3946532
25MAY 8578981
