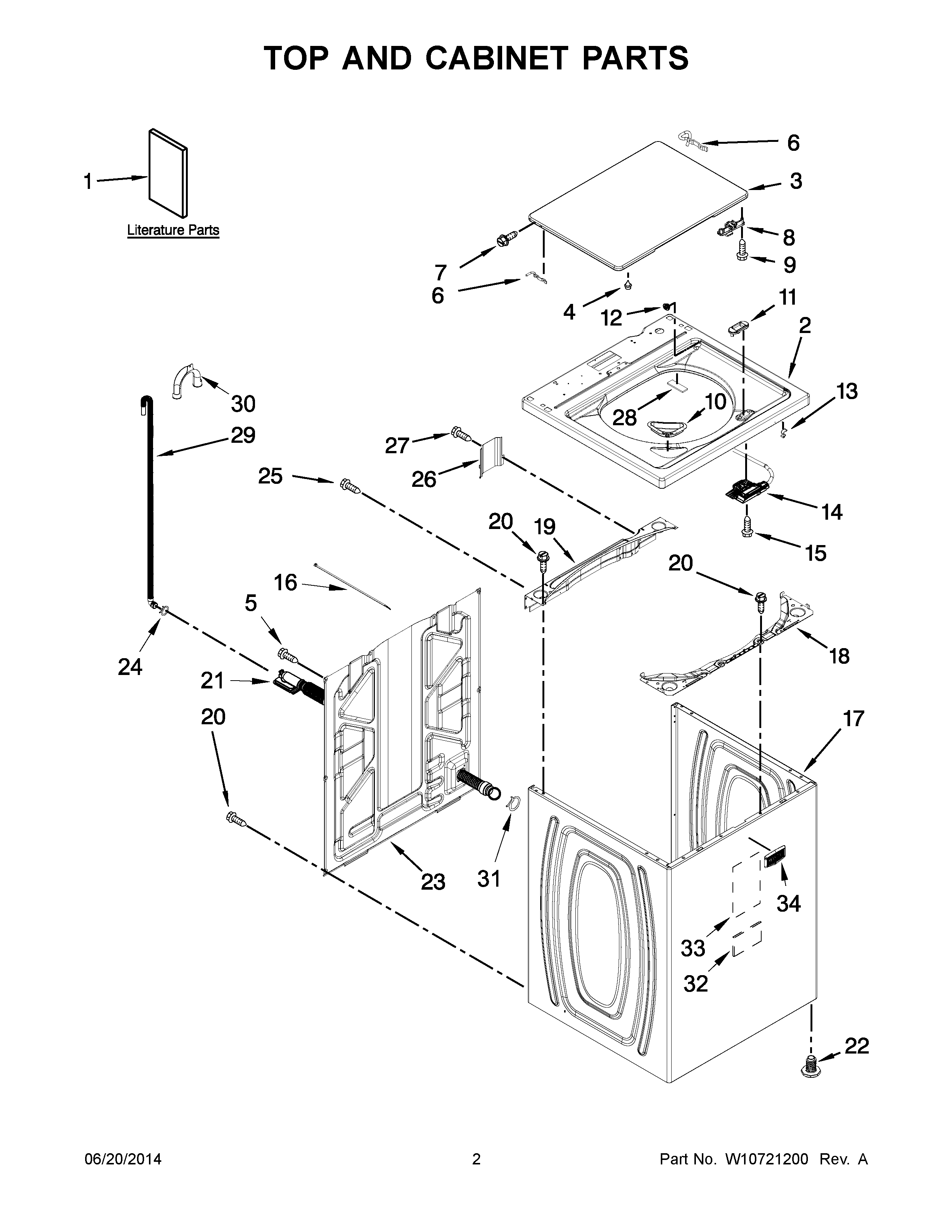

MVWC555DW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1	MAY W10677676
1	MAY W10607430
1	MAY W10062953
2	MAY W10608583
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID
6	HINGE, LID (RIGHT HAND)
7	Screw And Washer
8	MAY W10240513
9	SCREW
10	MAY W10192089
11	MAY W10392041
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W10238287
15	Screw
16	TIE, CABLE
17	CABINET (WHITE)
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY W10652930
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	MAY 356138
25	SCREW
26	COVER, HARNESS
27	Screw, 10-32 x 5/8
28	MAY W10330080
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY W10142630
32	MAY W10414221
33	ABSORBER, IMPACT
34	BADGE
