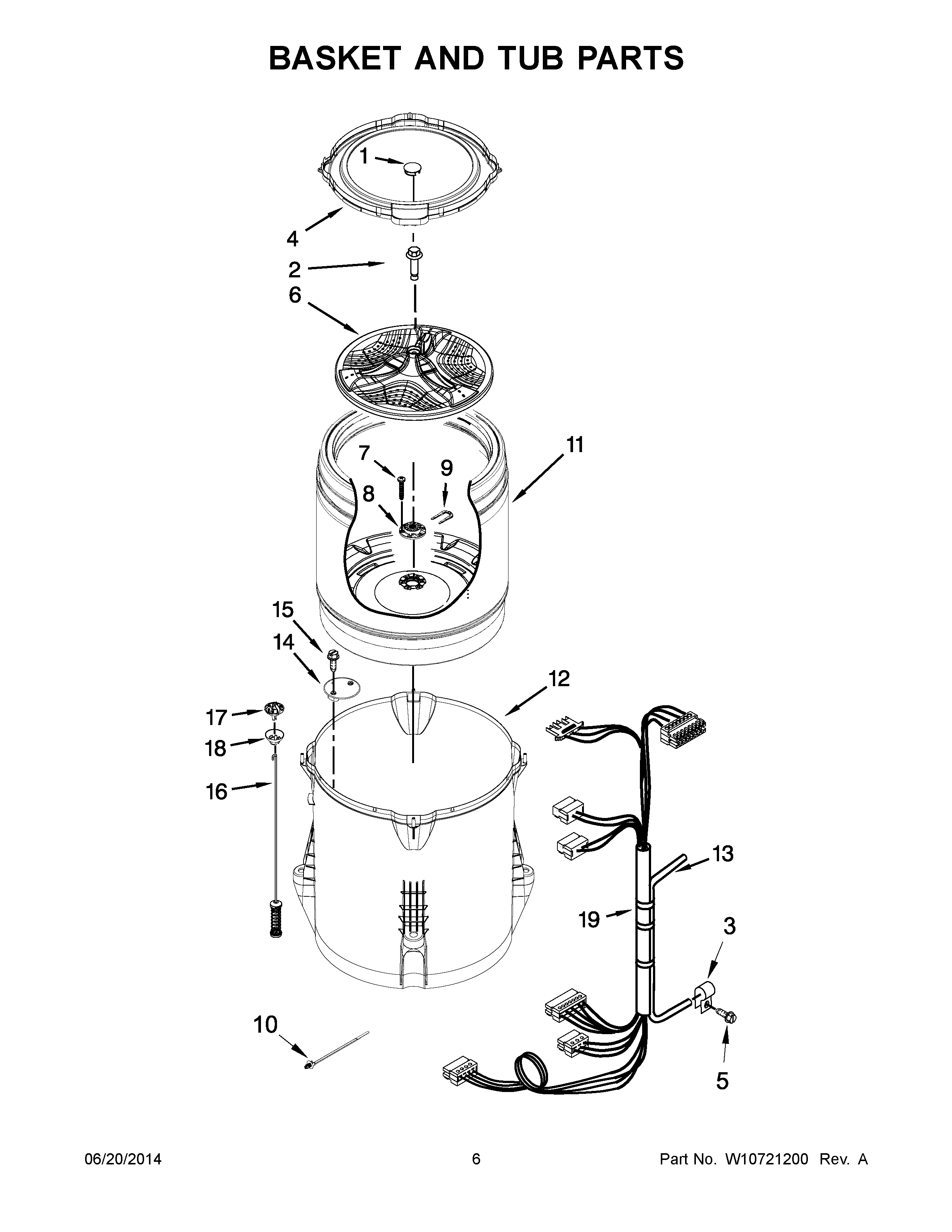

MVWC555DW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	CAP, IMPELLER
2	SCREW
3	CLAMP, CABLE
4	TUB RING
5	SCREW
6	MAY W10609480
7	SCREW
8	HUB – DRIVEN, BASKET
9	RETAINER, DRIVE BLOCK
10	MAY W10298887
11	BASKET ASSEMBLY
12	TUB
13	HOSE, PRESSURE SWITCH
14	MAY W10215093
15	Screw
16	MAY W10594080
17	BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
18	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
19	MAY W10530669
