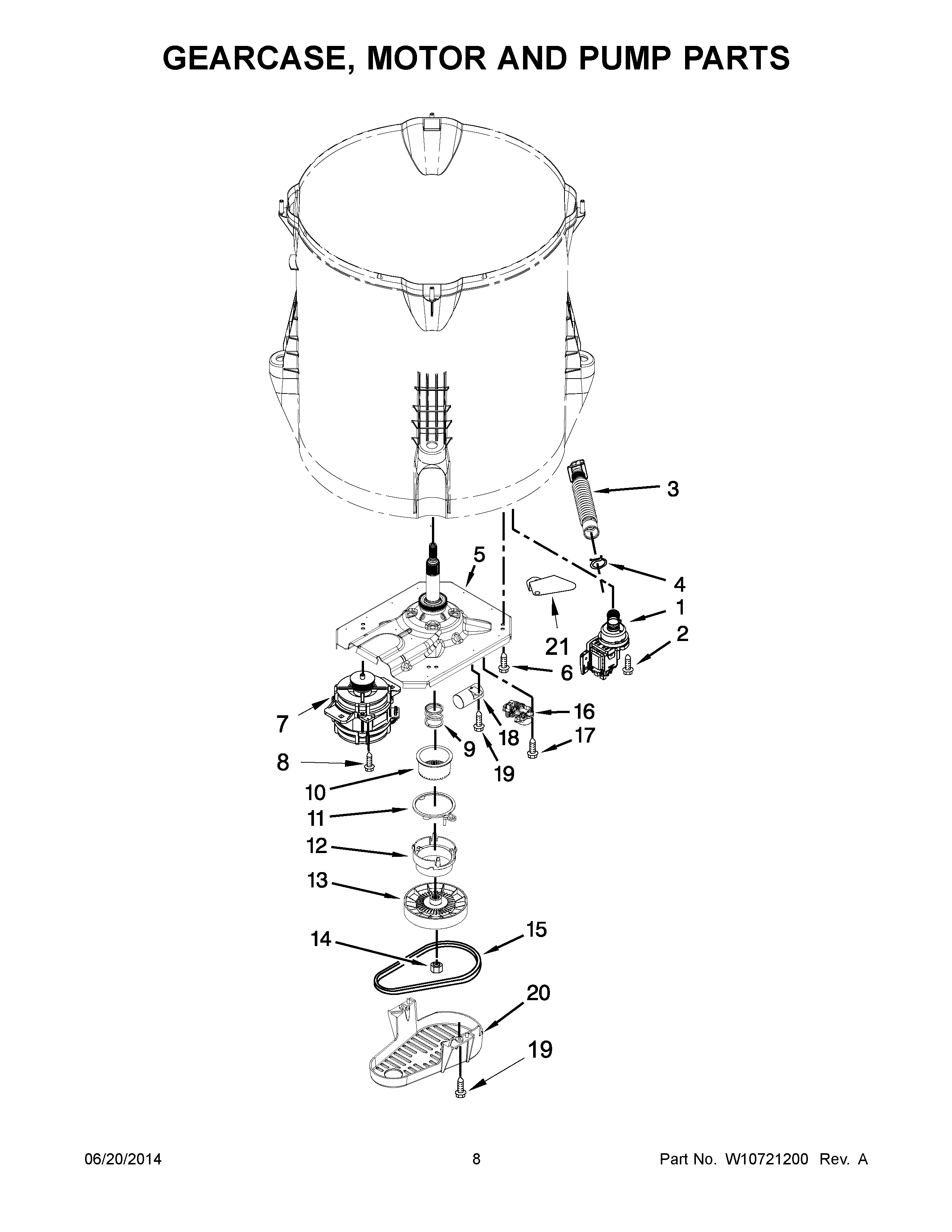

MVWC555DW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10581874
2	SCREW
3	MAY W10622690
4	MAY 8317496
5	MAY W10006481
6	SCREW
7	MAY W10006487
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH (INCLUDES ITEMS 9, 11, 12 AND 13)
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10239973
14	NUT
15	MAY W10006384
16	MAY W10597177
17	SCREW
18	MAY W10625046
19	SCREW
20	MAY W10427633
21	MAY W10637932
