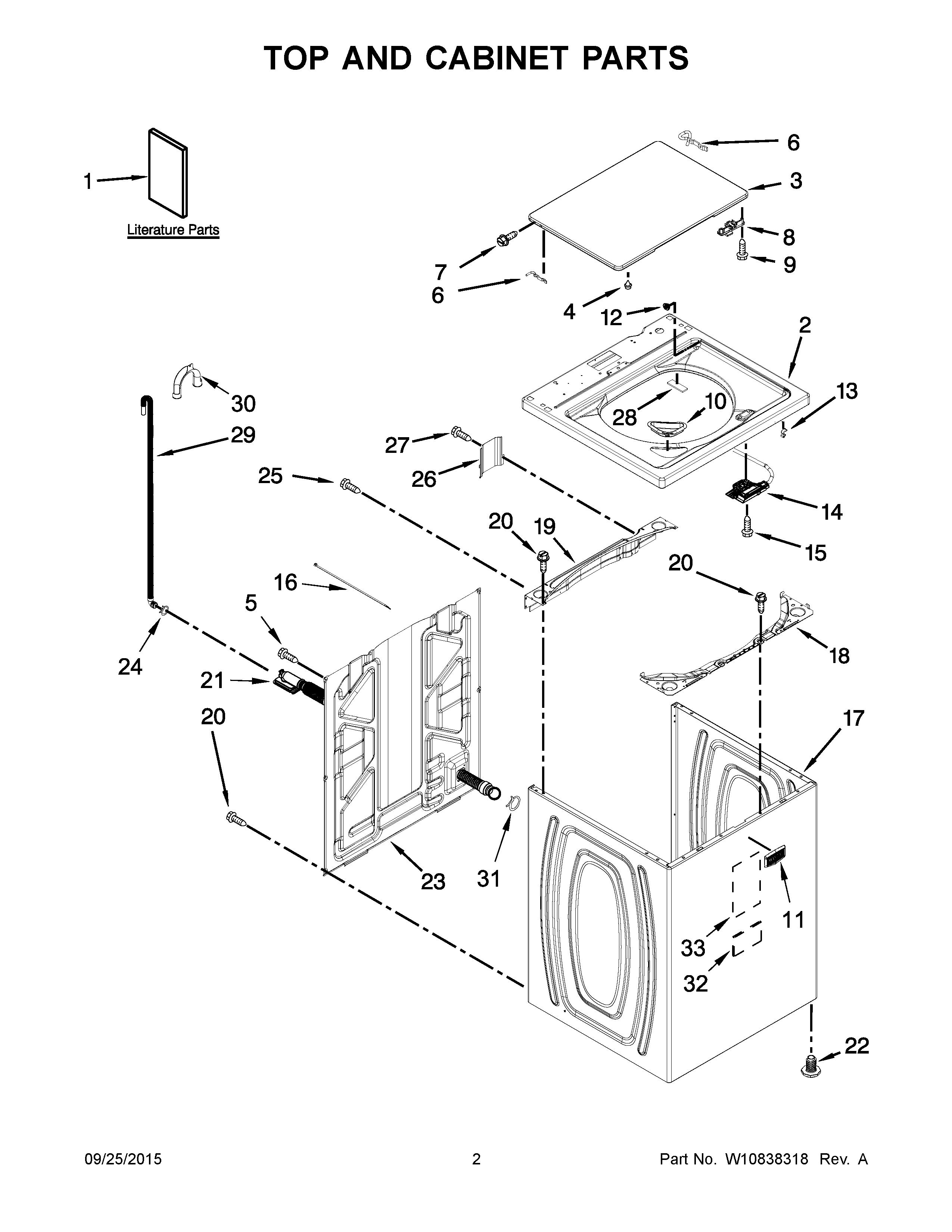

MVWC555DW1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1DMAY W10783949
1CMAY W10063022
1BMAY W10783956
1ATECH SHEET
1INSTRUCTIONS, INSTALLATION
2TOP (WHITE)
3ASSEMBLY, LID (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID
6AHINGE, LID (RIGHT HAND)
7Screw And Washer
8MAY W10714899
9SCREW
10MAY W10192089
11BADGE
12Hinge, Bearing (2)
13Clip, Wire (4)
14MAY W10682535
15Screw
16TIE, CABLE
17CABINET (WHITE)
18BRACE, CABINET TOP – FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20MAY 1157158
21MAY W10652930
22FOOT ASSEMBLY, LEVELING
23PANEL, REAR
24MAY 356138
25SCREW
26COVER, HARNESS
27Screw, 10-32 x 5/8
28MAY W10684258
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY W10142630
32MAY 8564458
33ABSORBER, IMPACT
