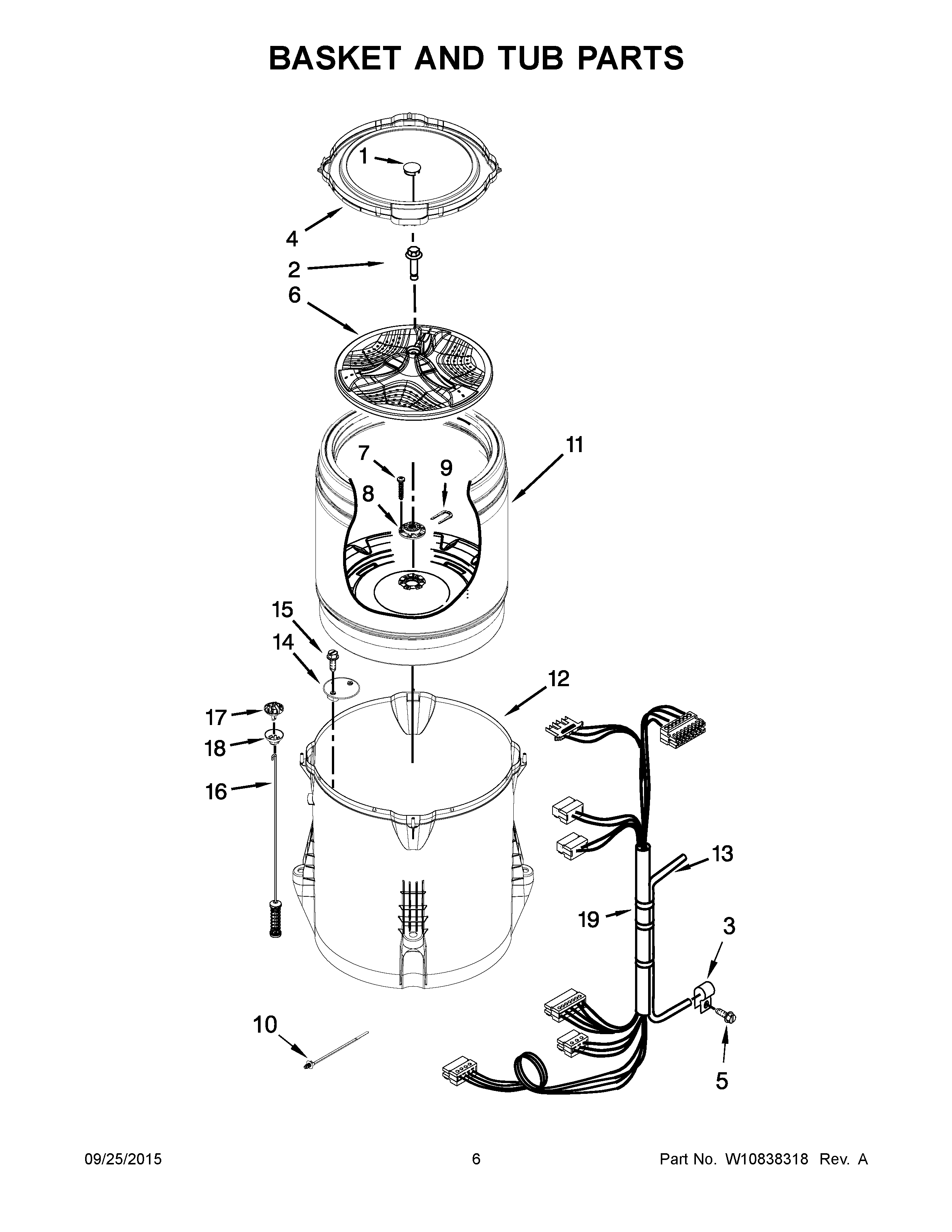

MVWC555DW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1CAP, IMPELLER
2SCREW
3CLAMP, CABLE
4TUB RING
5SCREW
6MAY W10609480
7SCREW
8HUB – DRIVEN, BASKET
9RETAINER, DRIVE BLOCK
10MAY W10339680
11BASKET ASSEMBLY
12TUB
13HOSE, PRESSURE SWITCH
14MAY W10215093
15Screw
16MAY W10748956
17BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
18BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
19MAY W10777952
