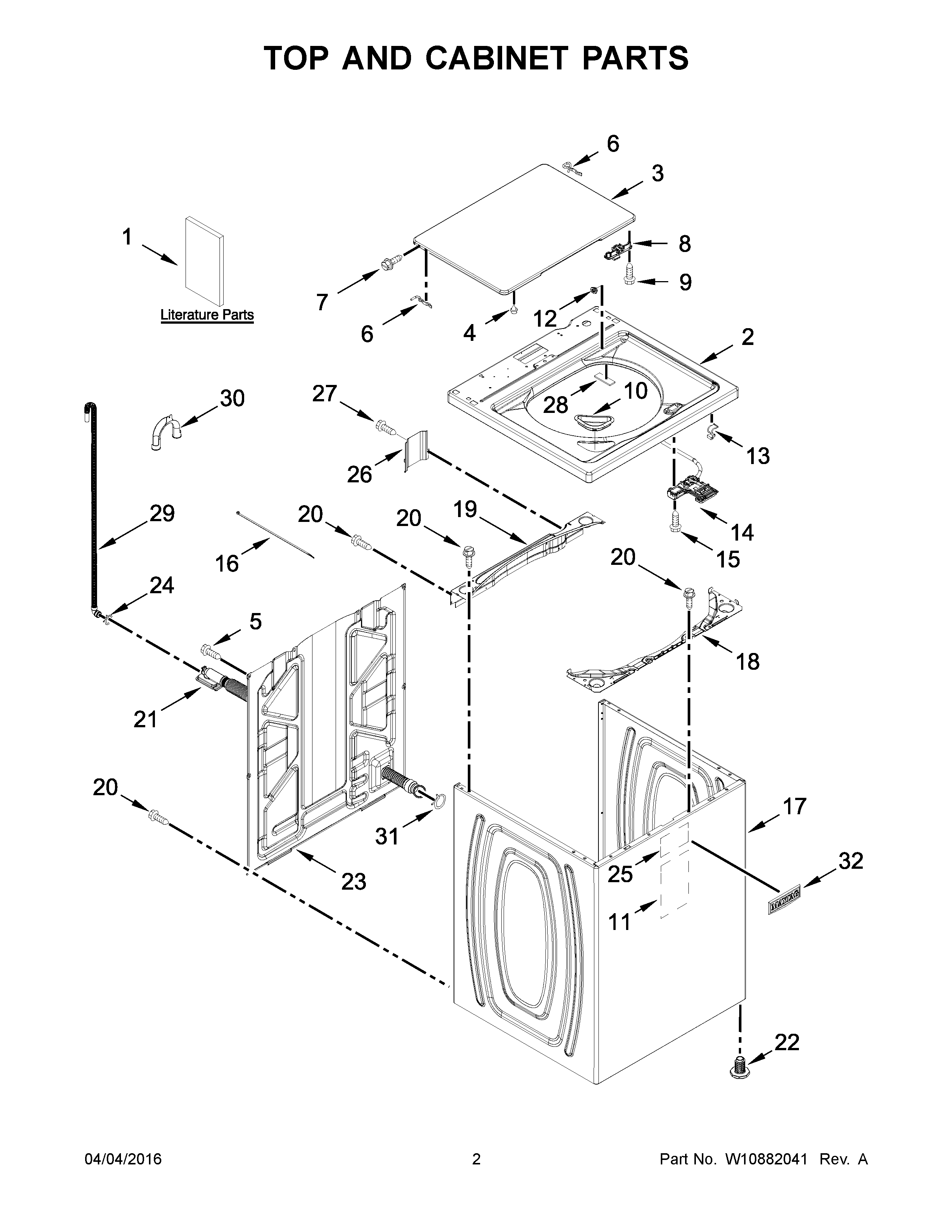

MVWC565FW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	USE AND CARE GUIDE
1C	MAY W10864126
1	INSTRUCTIONS, INSTALLATION
1A	TECH SHEET
1D	MAY W10877315
2	TOP (WHITE)
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6A	HINGE, LID (RIGHT HAND)
6	HINGE, LID
7	Screw And Washer
8	MAY W10714899
9	SCREW
10	MAY W10192089
11	ABSORBER, IMPACT
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W10682535
15	MAY W10213953
16	TIE, CABLE
17	CABINET (WHITE)
18	BRACE, CABINET TOP – FRONT (WHITE)
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY W10786886
22	FOOT ASSEMBLY, LEVELING
23	PANEL, REAR
24	MAY 356138
25	MAY 8564458
26	COVER, HARNESS
27	Screw, 10-32 x 5/8
28	MAY W10684258
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY W10142630
32	BADGE
