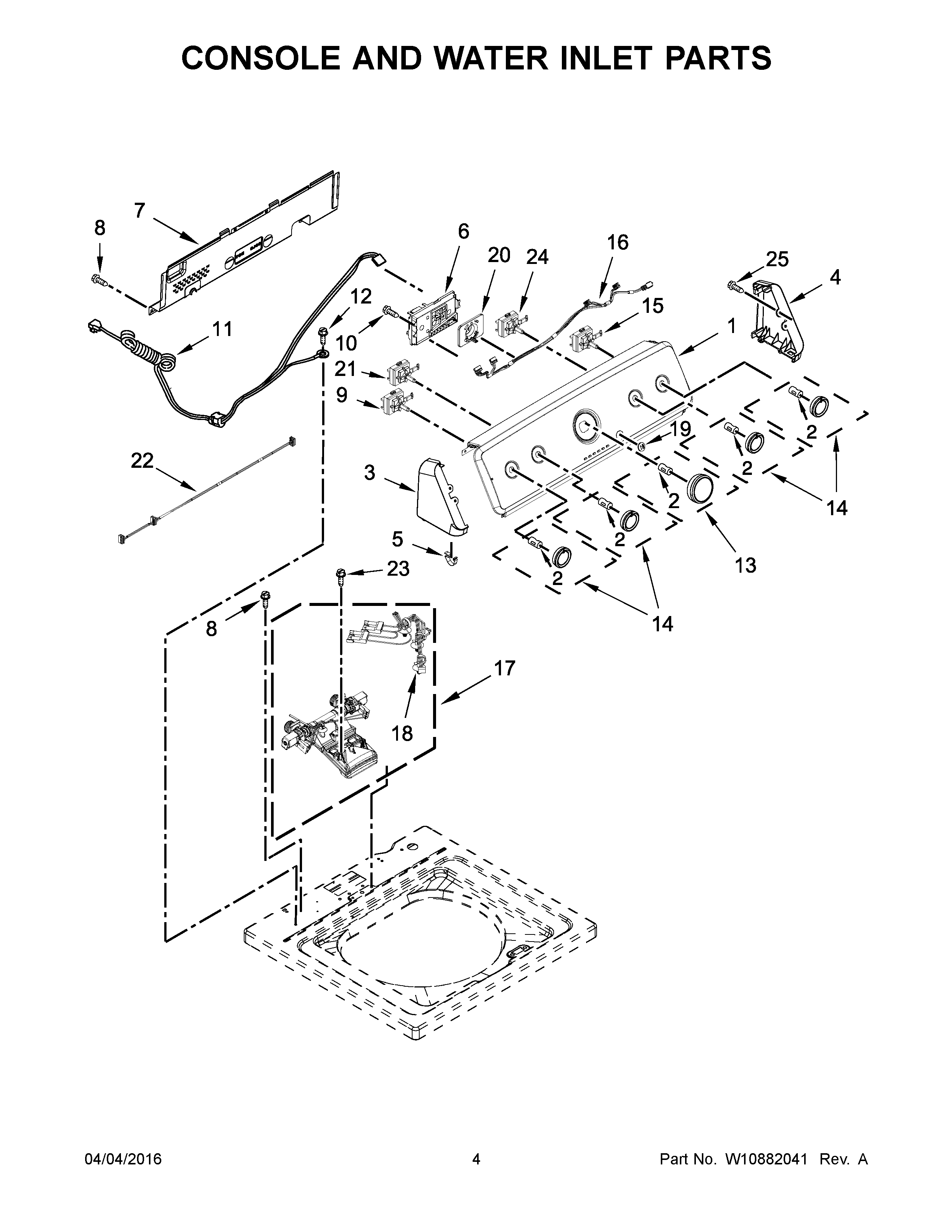

MVWC565FW0 03 – CONSOLE AND WATER INLET PARTS

MVWC565FW0 03 – CONSOLE AND WATER INLET PARTS

Written by

in

MVWC565FW0 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10863406
7PANEL, CONSOLE REAR COVER
8MAY 1157158
9SWITCH, ROTARY ENCODER
10SCREW,8-18 X 3/8
11CORD, POWER
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15MAY W10285511
16HARNESS, UPPER
17MAY W10776841
18MAY W10678671
19MAY W10584360
20MAY W10593638
21MAY W10285518
22HARNESS, JUMPER
23MAY W10213953
24SWITCH, ROTARY ENCODER
25MAY 359625
