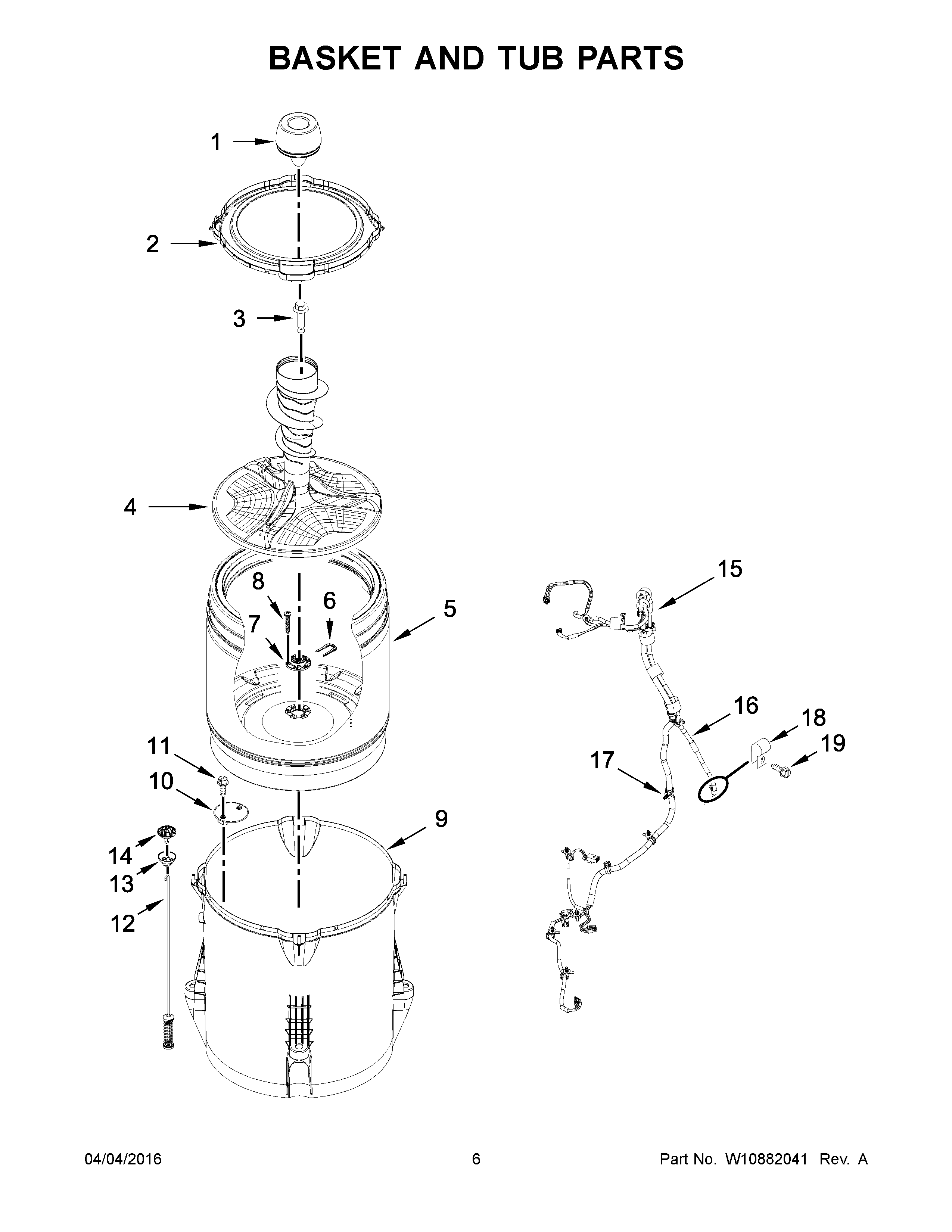

MVWC565FW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	DISPENSER, FABRIC SOFTENER
2	TUB RING
3	SCREW
4	AGITATOR (COMPLETE)
5	BASKET ASSEMBLY
6	RETAINER, DRIVE BLOCK
7	HUB – DRIVEN, BASKET
8	SCREW
9	TUB
10	MAY W10215093
11	Screw
12	MAY W10748956
13	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
14	BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
15	MAY W10777952
16	HOSE, PRESSURE SWITCH
17	MAY W10298887
18	CLAMP, CABLE
19	SCREW
